Handling large, heavy paper or film rolls in a production environment is a common challenge across industries such as printing, packaging, and film manufacturing. When space is limited and operational simplicity is essential, manual hydraulic roll lifters present a practical, efficient, and cost-effective solution.

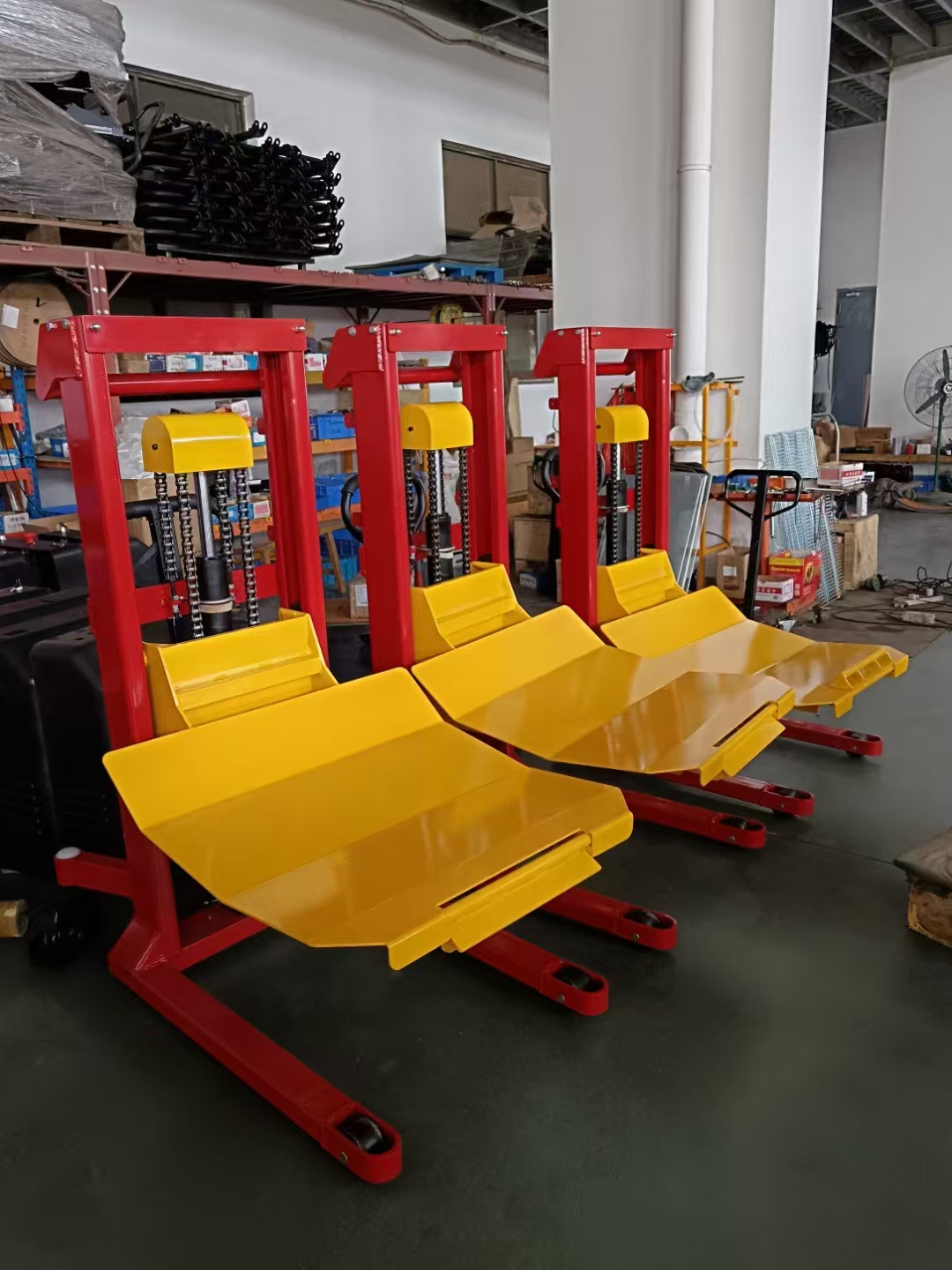

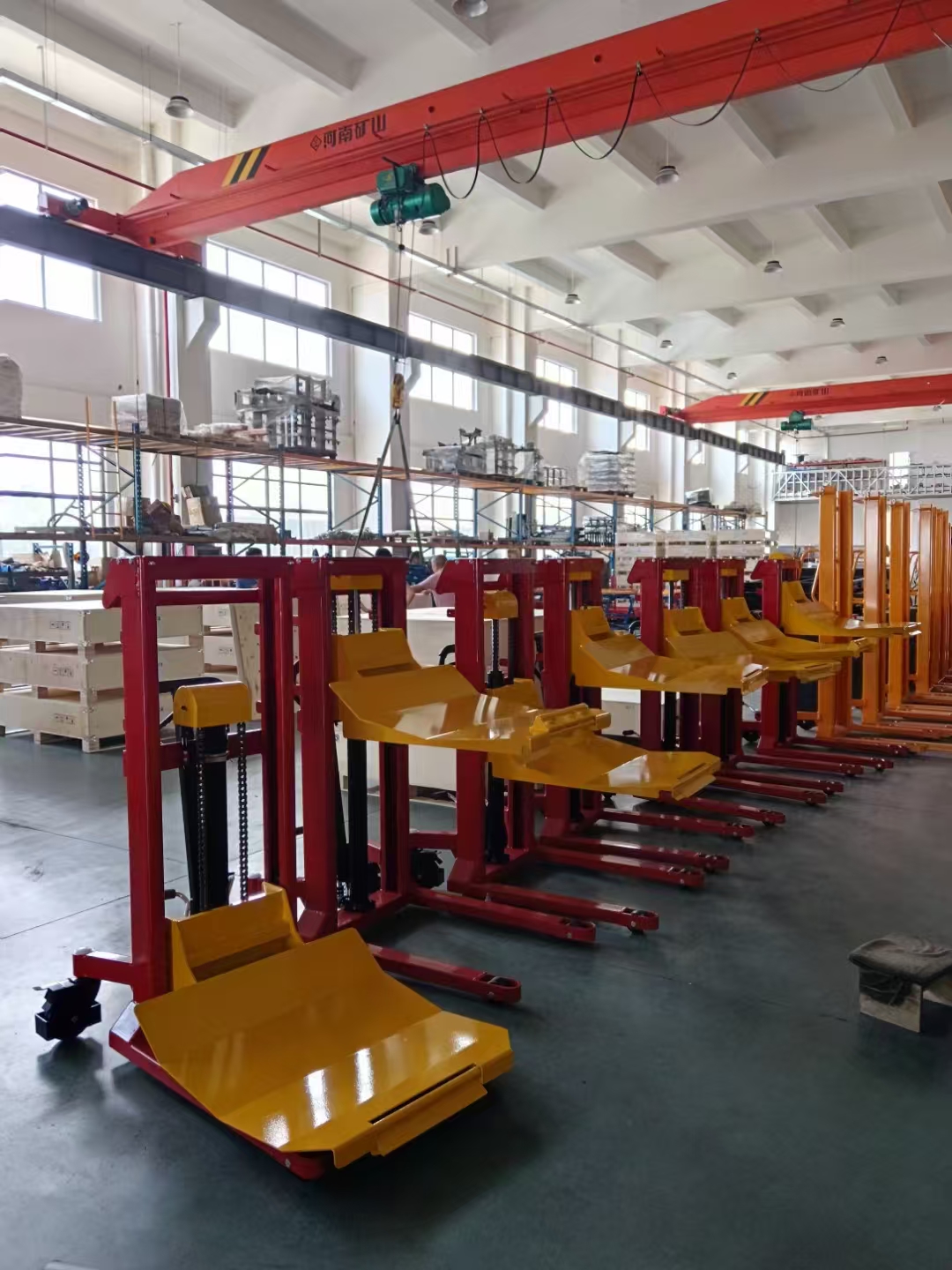

In this blog, we explore the design, components, and real-world applications of SINOLIFT’s customized manual paper roll lifter, developed for a domestic client requiring safe, low-maintenance roll handling in a confined production area.

What Is a Manual Hydraulic Paper Roll Lifter?

A manual hydraulic paper roll lifter is a non-powered material handling device specifically designed to lift, transport, and position cylindrical loads such as paper, film, or foil rolls. It uses a manual hydraulic pump to power vertical lift and relies on mechanical leverage and sturdy construction for movement and control.

Key Structural Features

1. Reinforced Lifting Mast

• The lifter uses a robust “C” channel steel mast, available in single or dual telescopic versions, depending on the required lifting height.

• Vertical movement is guided by deep-grooved rollers, which improve stability and reduce friction during lifting operations.

• The hydraulic system includes a single-acting honed cylinder with a hard chrome-plated piston rod, ensuring durability and smooth operation.

2. Chain & Pulley Mechanism

• A duplex or simplex chain connects the mast to the lifting carriage via a pulley system, offering precise and balanced elevation for rolls or palletized loads.

• This design ensures that the load remains stable and controllable during the entire lifting process.

3. Ergonomic Handle and Control

• The inverted double "U" shaped handle is ergonomically shaped for easy push and pull, even in confined or congested spaces.

• The handle is connected to a manual hydraulic pump, giving the operator full control of lifting and lowering motions.

4. Heavy-Duty Wheels for Easy Movement

• The lifter is equipped with:

  • Two front white nylon wheels (150×50mm) for high wear resistance and smooth movement across clean floors.

  • Two rear load rollers (78×70mm), designed to handle heavy weights while maintaining maneuverability.

• All wheels are fitted with double ball bearings, enhancing mobility under load.

Customizable for Specific Needs

SINOLIFT’s paper roll lifters can be tailored to suit a range of applications:

• Mast height and chain configuration can be modified based on roll diameter and lifting requirements.

• Wheel materials (nylon, PU, or rubber) can be selected based on floor condition—smooth concrete, tiles, or slightly uneven surfaces.

• Paint finish can be adapted for anti-corrosion, food-grade environments, or aesthetic alignment with plant equipment.

Where It’s Used: Application Scenarios

1. Printing and Packaging Facilities

• Transporting large paper or film rolls safely and efficiently.

• Loading/unloading rolls into slitting or printing machines.

• Reducing manual lifting tasks and associated injury risks.

2. Roll Storage Zones

• Compact design allows easy handling within tight warehouse aisles or near production lines.

• Quick deployment of multiple units provides high flexibility during peak production hours.

Advantages at a Glance

• ✅ Fully manual operation – no power supply or battery required.

• ✅ Minimal maintenance – fewer components reduce downtime and repair needs.

• ✅ Safe and easy for one-person use – even with loads up to 1000 kg.

• ✅ Long service life – industrial-grade materials and coatings.

• ✅ Excellent value – a budget-friendly yet reliable alternative to electric or pneumatic equipment.

Technical Snapshot

Final Thoughts

For facilities that need a durable, low-tech, and easy-to-use roll handling tool, SINOLIFT’s manual hydraulic paper roll lifter is a standout option. Whether you're looking to increase safety, reduce strain on workers, or simplify internal logistics, this lifter checks all the boxes.

Stay tuned for more equipment spotlights and technical insights from SINOLIFT. If you're unsure which roll lifter suits your production needs, our team is here to help with customized recommendations.

For more details or customization options, contact SINOLIFT today.
