Compact Power, Precision Lifting

Effortless Operation

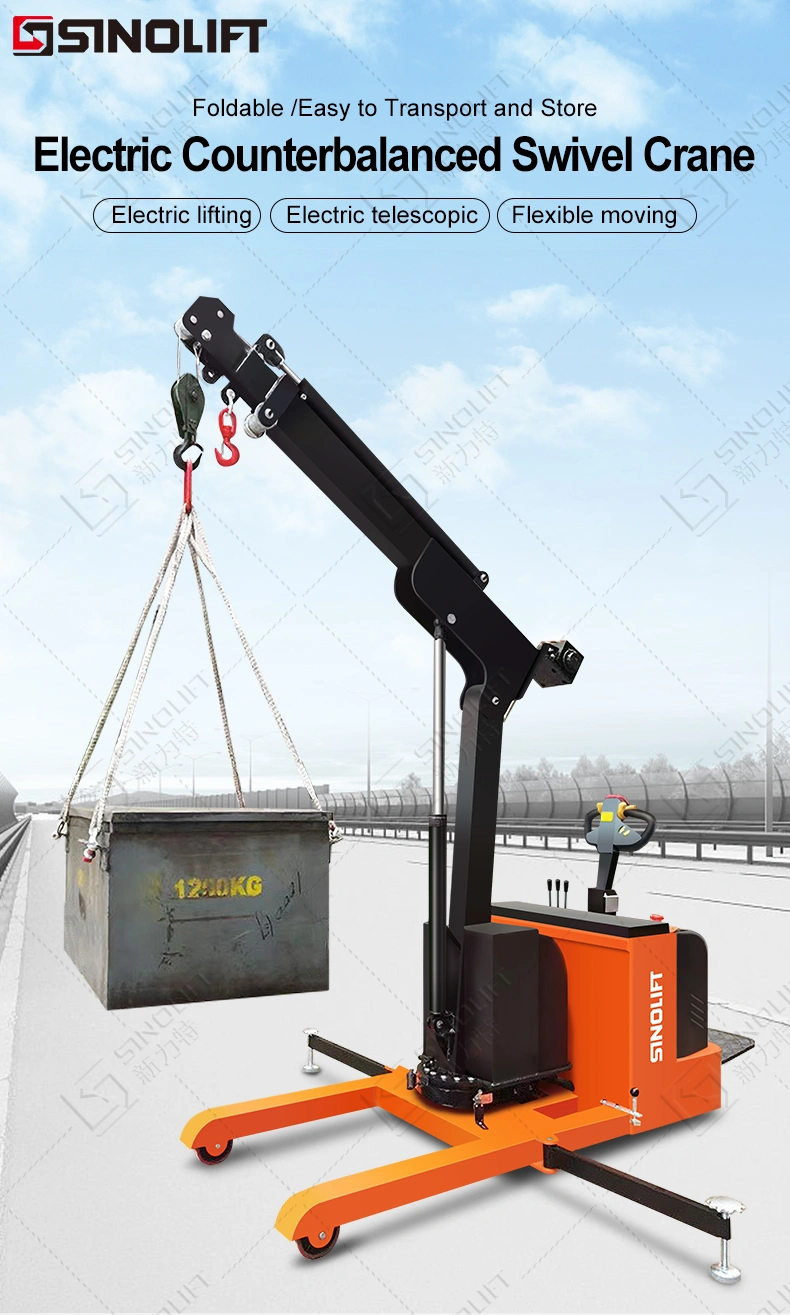

The YLF01 electric crane is designed for intuitive use, featuring a multi-functional control handle that seamlessly integrates human-machine interaction. With a stepless speed controller and high-power steering switch, operators can move smoothly and precisely. A robust, maintenance-free battery powers the high-efficiency hydraulic system and drive wheel, ensuring long-lasting performance with minimal upkeep.

Versatile Lifting Capabilities
The YLF01 features a three-section telescopic boom, offering a wide range of lifting applications.

• The first boom lifts up to 1000kg,

• The second boom up to 650kg,

• The third boom handles 300kg.
  Boom extension is conveniently powered by an oil cylinder, while the hook can be raised or lowered via remote control, ensuring flexible and efficient operation in various working environments.

User-Friendly Design
For added convenience, the crane includes a rear-mounted standing pedal to support operator mobility. This makes relocation quick and easy without compromising stability or safety.

Important Safety Notes

1. Outriggers must be fully deployed and in firm contact with the ground before lifting.

2. Always refer to the load attenuation curve to ensure safe operation within lifting limits.

3. Never stand under the boom during lifting operations.

Technical Specifications

• Boom Height Range: 0 mm to 3.6 m

• Boom Length (Extended): 3.2 m | Capacity: 300 kg

• Boom Length (Retracted): 1.62 m | Capacity: 1000 kg
