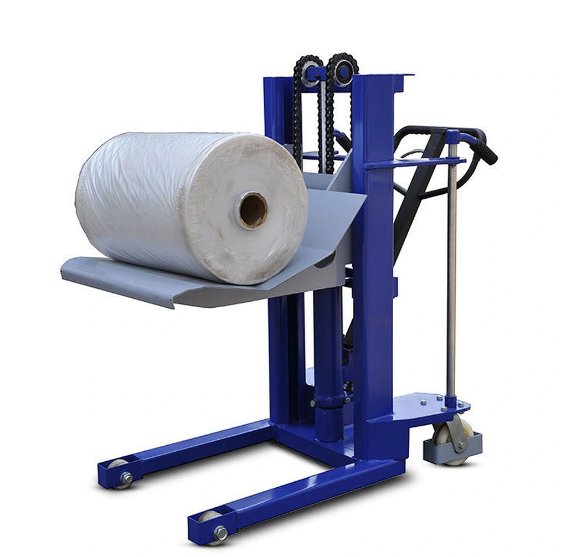

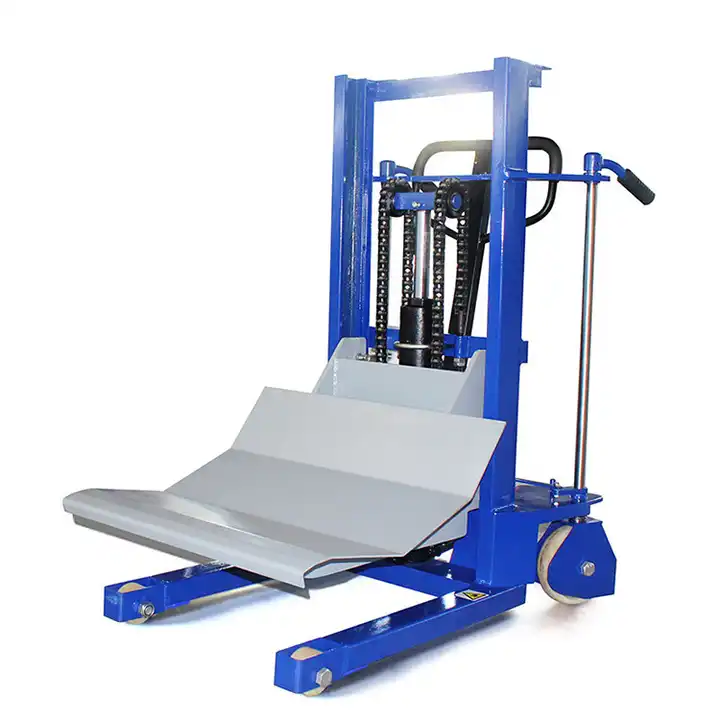

The manual paper roll stacker is perfect for lifting and moving rolls of paper, plastic, cloth, or film, making it suitable for various industries that process these materials. The BYC manual paper roll stacker is compact, user-friendly, and ideal for printing plants and other settings requiring roll transport.

Durable and Wear-Resistant

Constructed from high-quality steel profiles, the forks, masts, and brackets ensure durability and strength. The inner mast features sealed ball bearing rollers and side thrust rollers to prevent lateral movement. This stacker is equipped with a hydraulic system for smooth operation.

Hydraulic Cylinder Design

The stacker’s fork is raised or lowered using a hydraulic manual pump, moving 15 mm per stroke. The pump includes a screw release valve to stabilize and control the descent of the fork. The hydraulic cylinder is made from seamless pipe with a hard chrome-plated piston rod, and both lift height and plate size can be customized based on buyer specifications.

Flexible Design

With a small turning radius, this stacker is easy to operate and maneuver. It features universal wheels for smooth movement and manual lifting via the hydraulic pump.

High-Quality Configuration

Equipped with a high-strength roller chain and reinforced transmission, this stacker can handle heavy loads with ease. It is designed specifically for lifting and transporting cylindrical materials. The flexible steering system includes universal wheels at the front and rear, with brakes and foot protection on the rear wheels. The high-load oil cylinder ensures smooth lifting, while a maintenance-free battery reduces upkeep time. Overall, the durable construction enhances longevity and performance.
