Products – Mini Stacker



Name:TFL Container Hydraulic Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
 01 Winch Mini Stacker
 02 Manual Hydraulic Mini stacker
 03 Semi-electric Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

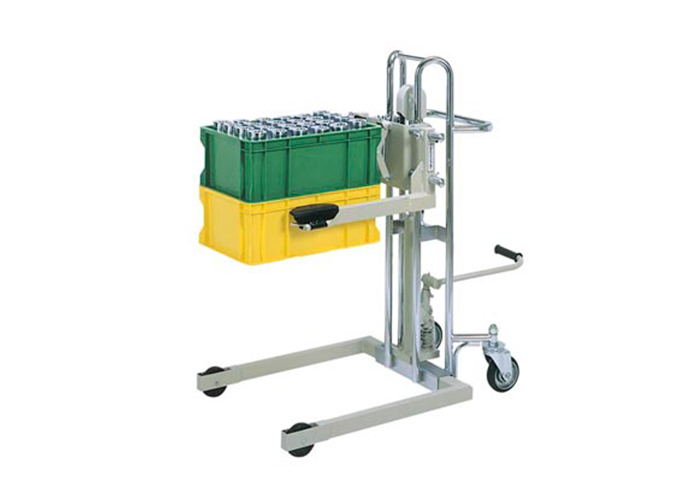

TFL Container Hydraulic Stacker with controllable direction handle

Idear for use in narrow aisles an confined spaces.
Perfect for all applications from pharmaceutical to catering, from packing line to food processing,

from warehouse to office, kitchens, laboratories, retail outlets.etc.
Small turning radius make it easier to make sharp turns.
Controllable direction handle.
Has a dual pump for easier lifting.

Specifications:
Model TFL150-SL TFL150-SM TFL150-LL TFL150-LM TFL150-TL TFL150-TM
Capacity kg 150 150 150 150 150 150
Lifting Height mm 850 1200 787 1137 870 1220
Min. Height mm 70 70 70 70 90 90
L mm 500 500 650 650 510 510
C mm 202 402 254 454 240 440
D mm 280 280 570 570 200 200
E mm 450 600 450 600 450 600
F mm 358 508 358 508 358 508
G mm 953 953 1045 1045 953 953
K mm 536 536 536 536 536 536
A mm 1134 1484 1134 1484 1134 1484
Net Weight kg 51 56 50 55 50 55
