Products – Mini Stacker

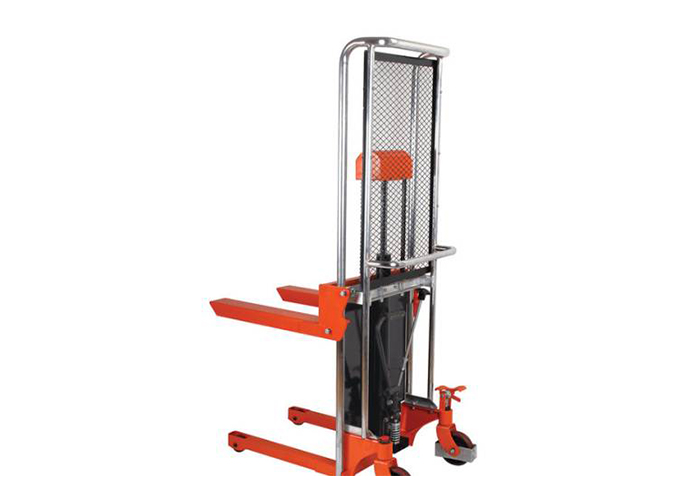

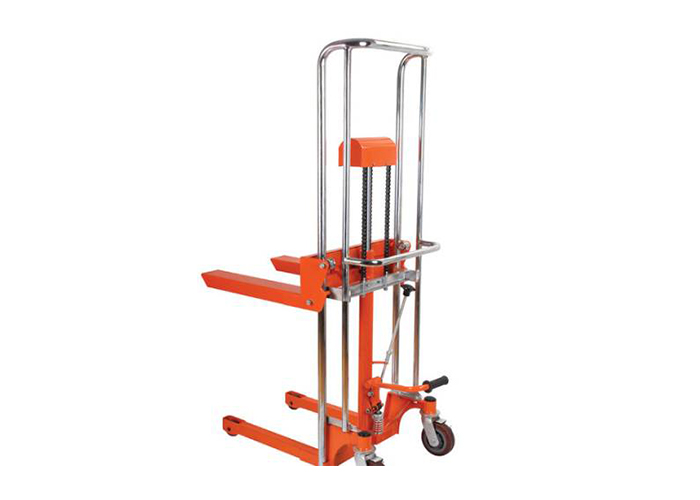

Name：TF Mini Stacker
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
 01 Winch Mini Stacker
 02 Manual Hydraulic Mini stacker
 03 Semi-electric Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

TF Mini Stacker with Smooth Operating Twin Speed foot pump

Our Mini stackers are excellent for everyday light duty work area where loads to be lifted far exceed

"the Manual Handling Directive" but do not demand a heavy duty industrial stacker.


With capacities of 200kg and 400kg respectively and two lift height options the Mini stackers are

suitable for many internal jobs too.


▲Smooth Operating Twin Speed foot pump.
▲Positive lifting.
▲Pressure / Overload Valve.
▲Smart Chromium plated frame.
▲Powder Coated platform.
▲Smooth running Braked steer wheels.
▲Very manoeuvrable.
▲CE marked and supplied with certificate of Conformity.
▲EX STOCK.

Specifications：


Model TFD20-85 TFD20-120 TFD40-85 TFD40-120 TFD40150
Capacity (kg) 200 200 400 400 400
Min. Fork Height (mm) 80 80 80 80 80
Max. Fork Height (mm) 850 1200 850 1200 1500
Forkv Length (mm) 600 600 650 650 650
Adjustable Fork Width (mm) 215-500 215-500 235-500 235-500 235-500
Single Fork Width (mm) 100 100 110 110 110
Dia of Front Wheel (mm) 75
Dia of Steering Wheel (mm) 125
Chassis Height (mm) 32.5 32.5 32.5 32.5 32.5
Power Pack Motor (KW) 0.7
Battery (V/Ah) 12/60 12/60 12/80 12/80 12/80
Overall Length (mm) 1020 1020 1100 1100 1100
Overall Width (mm) 560 560 590 590 590
Overall Height (mm) 1080 1435 1060 1410 1710
Option Platform (mm) LP10(610 x 530) LP20(660 x 580)
Net weight (kg) 90 97 105 116 122
Minimum Qty. (pcs) 2 2 2 2 2
