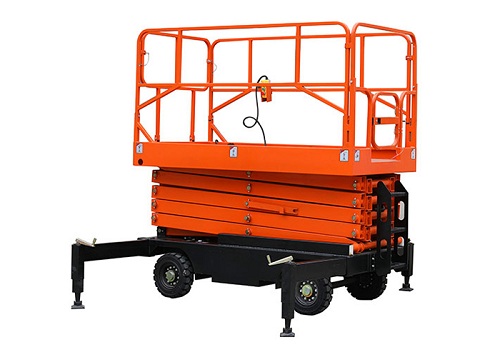

Name:SJY(I)Mobile Scissors Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.Mobile traction scissor lifting platforms take advantage of external force to make lifting equipment, with three-phase power moving fast and convenient, good for long-distance operations.

2.As one convenient lifting equipment, mobile traction scissor lifts have electric up-down switch and auto up-down switch, the worker on the ground or on the table can control the up and down of the table.

3.Lift table is equipped with hydraulic pump used for no power circumstances, the cylinder of this table has the unloading control value, when the hydraulic system is out of work.

Specifications:

Model



SJY0.5-6

SJY0.5-7.5

SJY0.5-9

SJY0.5-11

Max. Platform Height

mm

6000

7500

9000

11000

Min. Platform Height

mm

1350

1450

1650

1800

Platform Size

mm

1780×840×1100

2180×1000×1100

2200×1100×1100

Lift Rated Capacity

kg

500

Safety Working Load

kg

250

The Developed Dimension Of Legs

mm

2300×1700

2700×2200

3100×2200

Elevating Time

s

59

77

Electromotor Power

kw

2.2

Voltage

v

380

Overall Length

mm

1820

2270

Overall Width

mm

1060

1250

1450

Overall Height

mm

1350

1450

1650

1800

Overall Net Weight

kg

950

1350

1600

1800
