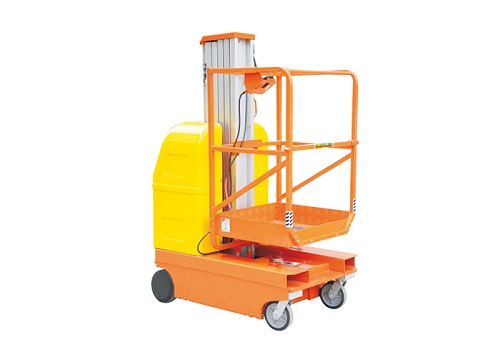

Name:AMWP-1000 Single Mast Self-propelled Aerial Work Platform
Click to view larger

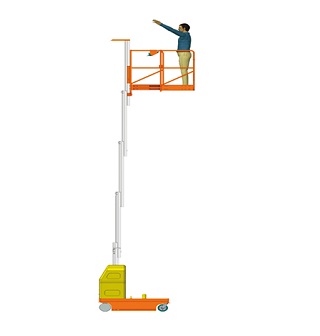

Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.It is powered by DC, can move automatically, has the function of exchanging low and high speeds, can be controlled manually and requires no manual push.

2.The driving motor has the automatic braking function.

3.It can climb to a certain gradient.

4.It has special design for moving on unleveled floor and tilt alarm..

5.The malfunction can be diagnosed and displayed in codes. The emergent drop will be locked.

6.The electricity recharge is protected. In recharging condition, the operation is stopped.

Specifications:

Model No.



AMWP6-1000

AMWP7.5-1000

Max. Platform Height

mm

6000

7500

Max. Machine Height

7600

9000

Min. Platform Height

510

Ground Clearance

50

Lift Rated Capacity

kg

150

125

Platform Extend Capacity

Free Set

Platform Size

mm

780×700×1150

Platform Extend Length

Free Set

Max. Drive Speed             (Platform Stowed)

km/h

3~4

Max. Drive Speed             (Platform Elevated)

0.6-1

Min. Turning Radius

mm

1350

Max. Travel Grade

%

15-20

Caster Size

in

8

Driving Wheel Size

mm

ф230-250×80

Driving Motor

v/kw

2×24/0.4-0.5

Lifting Motor

24/ 2

Aneroid Battery

v/Ah

2×12/100

Charger

v/A

24/ 12

Pothole Protection System



Automechanism

Overall Length

mm

1360

Overall Width

790

Overall Height

1980

Overall Net Weight

kg

850

880
