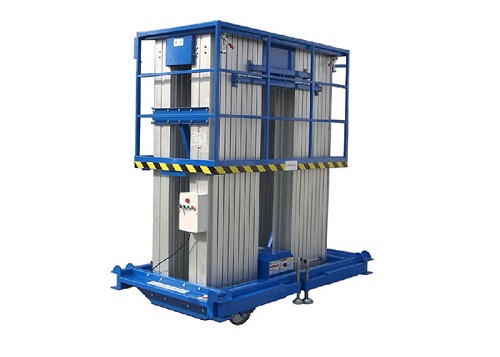

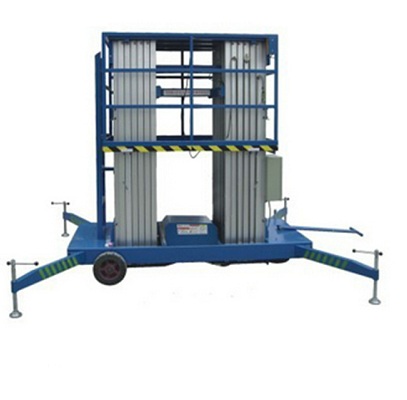

Name:GTWY-4000 Four Mast Aluminum Aerial Work Platform
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Four masts are descended or ascended synchronously with excellent stability;
1.With guardrail similar to that of double mast aerial work platform;
2.Platform can be designed to horizontal extension or rotating or both for working by stepping over ground obstacle;
3.Electric driving unit is equipped for moving;
4.Rubber roller can be fitted on driving roller according to customer requirements;
5.Power Supply: Single phase AC;
6.Platform can be extended horizontally (optional);
7.Extended size (optional): 100013001600mm;
8.Traveling Method: powered propeller as standard; manual traveling as option;

Specifications:

Model

GTWY10-4000

GTWY12-4000

GTWY14-4000

GTWY16-4000

GTWY18-4000

Working Height

mm

11700

13700

15700

17700

19700

Platform Height

mm

10000

12000

14000

16000

18000

Platform Capacity

kg

400

350

300

180

125

Loading Persons

p

2

2

2

2

2

Platform Size

mm

1480×1000

1480×1000

1580×1000

1480×1000

1480×1000

Voltage

v/hz

Ac220/50

Ac220/50

Ac220/50

Ac220/50

Ac220/50

Power Pack

kw

1.5

1.5

1.5

1.5 + 0.75

1.5 + 0.75

Stored Dimensions

mm

1690x1040x2120

1690x1040x2480

1790x1040x2480

2260x1200x2120

2260x1200x2220

Net Weight

kg

920

1020

1120

1480

1580
