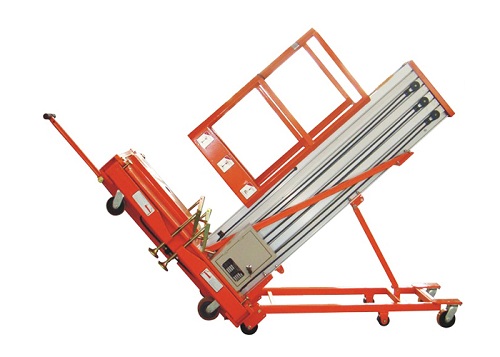

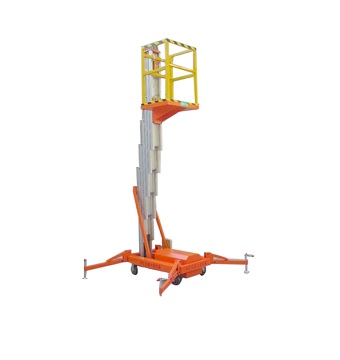

Name:GTWY-1200 Single Mast Aluminum Aerial Work Platform
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.With high strength aluminum alloy material effective for less deflection and wavering during elevation.

2.With imported hydraulic pressure pump valve and electric motors with CE certification of E.U.S table operation and little noise.


3.Every product mounted with DC power on basis of customers’ requirement.
4.Independent electric unit with protection for electric leakage or overloading.

5.Solid-state relay, no contact, no sparks, dust-proof, vibration-tolerance.
6.With parts convenient for the loading vehicle to better the loading and unloading and the mobile work.

Specifications:

Model

GTWY6-1200

GTWY8-1200

GTWY10-1200

Lift Rated Capacity

kg

150

125

125

Max Platform Height

mm

6000

8000

10000

Max Machine Height

mm

7700

9700

11700

Ground Clearance

mm

80

80

80

Platform Size

mm

650x600

Outspread Size

mm

1930x1770

Power

AC

V

220

 DC

V

24

Battery

V/Ah

2x12/60

Charger

V

24/10

Lifting Motor

 AC

V/KW

220/0.75

 DC

V/KW

24/2.0

Overall Length



mm

1560

1560

1560

Overall Width



mm

800

800

800

Overall Height



mm

1950

2050

2150

Overall Weight

AC

kg

300

350

400

DC

kg

330

380

430
