Products – Aerial Work Platform

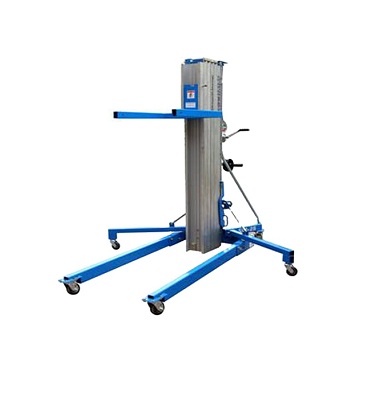

Name:LGA Aluminum Material Lifts
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.Lowering easily

2.To make you lift quickly and convenient, the LGA super material lift can be operated by one person for lifting and moving the goods.

3.Multiple optional parts such Lighthouse device

4.LGA series material lift can be equipped with multiple fork, such as the lighthouse device can be used for emergency lighting and other uses.

5.The stowed height of the LGA series materials lift is lower than 2m, it is easily to pass cross the standard doorway, the Roller equipped on the back makes the transportation more convenient.

Specifications:

Model

LGA-10

LGA-15

LGA-20

LGA-25

Standard Forks

9 ft 9 in

14ft 7 1/2in

19ft 6in

24ft 4 in

3m

4.5m

6m

7.4m

Length Operating

57 1/2in

72 1/2in

80 1/2in

80 1/2in

146cm

184cm

204cm

204cm

Load Capacity/at 18" load center

771lbs

660lbs

550lbs

440lbs

350kg

300kg

250kg

200kg

Length-Stowed

29in

29in

29in

31in

74cm

74cm

74cm

79cm

Width Standard Base

31 1/2in

31 1/2in

31 1/2in

31 1/2in

80cm

80cm

80cm

80cm

Height-Stowed

78 1/2in

78 1/2in

78 1/2in

78 1/2in

199cm

199cm

199cm

199cm

Net Weight-Standard Base

260lbs

317lbs

450lbs

450lbs

117.9kg

143.8kg

183.7kg

204.1kg
