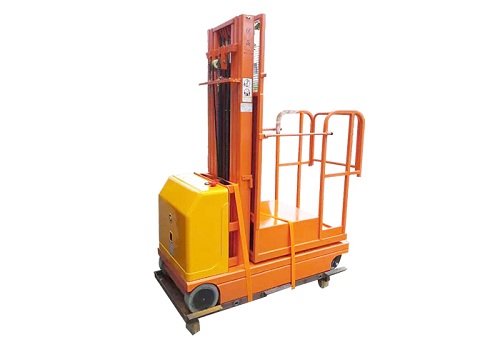

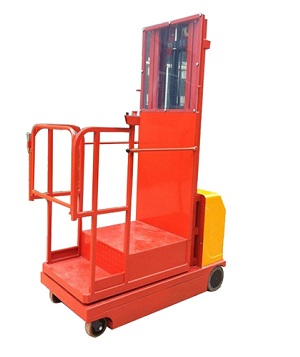

Name:ZDYT Full Electric Order Picker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

This Battery Drive Order Picker by OKUTSU has been introduced as a lighter version of battery drive platform/stacker with the features that the operator will stand over the rising platform under full protection of railings and go up to pick and choose the packages from the racks and bring them down with easy. Similarly, he will take the packages up and place them on the racks at their proper place.

1. Be able to drive at maximum height of platform
2.Maneuverable, extremely easy to use
3.High safety and efficiency
4.Imported top quality electric control system
5.“C” section forks for greatest strength
6.Supplied with battery and automatic charger
7.Conforms to EN-280


Specifications:

Model



ZDYT300-2.7

ZDYT300-3.3

ZDYT300-3.5

ZDYT300-4.0

ZDYT300-4.5

Max.Platform Height        H

mm

2700

3300

3500

4000

4500

Max.Machine Height     H1

mm

4120

5000

5500

6000

6500

Mast



Duplex 2-stage

Triplex 3-stage

Ground Clearance      H1

mm

40

40

50

50

50

Lift Rated Capacity

kg

300

300

300

300

300

Platform Size

mm

600×640

600×640

600×640

600×640

600×640

Max.Drive Speed (platform Stowed)

km/h

4

4

4

4

4

Max.Drive Speed (platform Elevated)

km/h

1.6

1.6

1.1

1.1

1.1

Min. Turning Radius

mm

1500

1500

1700

1700

1700

Max. Climbing Capacity

%

20

20

25

25

25

Driving Wheel Size

mm

Φ230×80

Φ230×80

Φ230×80

Φ230×80

Φ230×80

Steer Wheel

inch

6

6

6

6

6

Driving Motor

V/kw

2×24DC/0.5

2×24DC/0.5

2×24DC/0.4

2×24DC/0.4

2×24DC/0.4

Lifting Motor

V/kw

24/1.6

24/1.6

24/2.0

24/2.0

24/2.0

Battery

V/Ah

2X12/120

2X12/120

2X12/120

2X12/120

2X12/120

Charger

V/A

24/15

24/15

24/20

24/20

24/20

Overall Length

mm

1530

1530

1550

1550

1550

Overall Width

mm

700

700

700

700

700

Overall Height

mm

1830

1830

1640

1810

1980

Net Weight

kg

430

450

655

665

675
