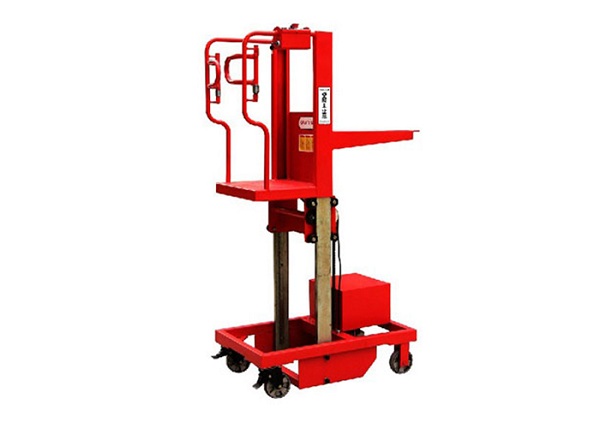

Name:WFA Semi-Electric Order Picker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
import pump station, Lifting is smooth and powerful

America Valta (VARTA) maintenance-free battery, saving maintenance time and cost, durable electric power,
with power indicator, low pressure warning lights.

With a number of security protection to ensure the safety

Apply to the Treasury, libraries, supermarkets, and the selection operation or maintenance work at high place

Specifications:

Model



WFA300-30

WFA300-35

WFA300-40

WFA300-45

Capacity (including human)

kg

300

300

300

300

Max. platform heigth

mm

3000

3500

4000

4500

Max. Working height

mm

5000

5500

6000

6500

Platform Size

mm

950x600

950x600

950x600

950x600

Ground Clearance

mm

40

40

50

50

Driver Motor

V/kw

24/0.4

24/0.4

24/0.4

24/0.4

Lifting Motor

V/kw

24/2.0

24/2.0

24/2.0

24/2.0

Battery

V/AH

24/120

24/120

24/120

24/120

Travelling Speed (lowered)

km/h

4

4

4

4

Travelling Speed (raised)

km/h

1.1

1.1

1.1

1.1

Lifting Speed

km/h

20

24

20

23

Lowering Speed

km/h

22

26

22

25

Gradeablity

%

25

25

25

25

Overall Size (LxWxH)

mm

1530x700x1890

1530x700x2140

1530x700x1810

1530x700x1980

Net weight

kg

574

588

665

675
