Products – Stationary Lift Platform

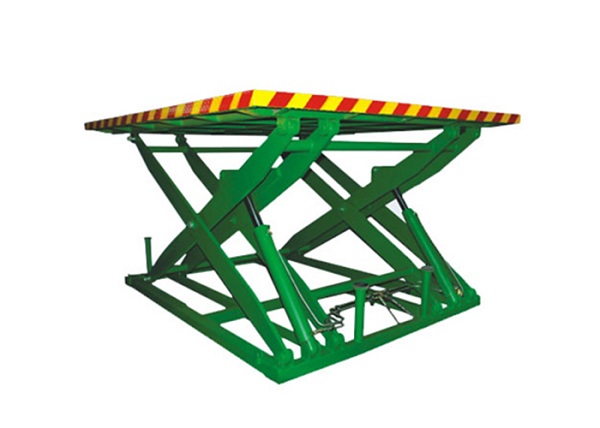

Name：SJG  Single Scissorslift Elevator
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

1.The mechanistic form of optimized design effectively lowers the initial height of the lift table, and increases the lifting stroke to the maximum range.

2.The fairly strong rigidity of the lifting mechanism enables the lift table to have every high rise and fall steadiness.

3.The reliability of the lifting mechanism, and the stability of the hydraulic system make the lift table suitable for frequent operation.

4.The steel have undergone shot blast treatment, effectively improving the welding quality and paint adhesive force.

5.The precision ground hydraulic cylinder inner wall fitted with imported sealing elements ensure the hydraulic cylinder has very good sealing performance.

6.The compact type hydraulic station design can be integrated inside of most lift tables.

Specifications：

Model

Capacity (kg)

Lifting height H2(mm)

Rated height(mm)

Lift Height(mm)

Platform size(mm)

Elevating time(s)

Motor power(kw)

Self weight (kg)

Stationary Hydraulic Lift Table with Single forks

SJG1-1.7

1000

1700

2160

460

2500x2000

30

2.2

1200

SJG2-1.7

2000

1700

2180

480

2500x2000

30

3.7

1400

SJG3-1.7

3000

1700

2180

480

2500x2000

30

3.7

1600

SJG5-1.7

5000

1700

2280

580

2800x2000

30

7.5

2000

SJG10-1.7

10000

1700

2500

800

4000x2000

30

7.5

3000
