Products – Stationary Lift Platform

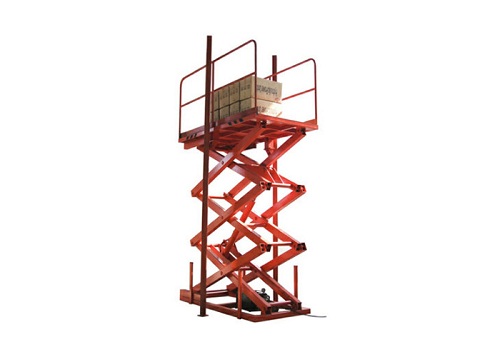

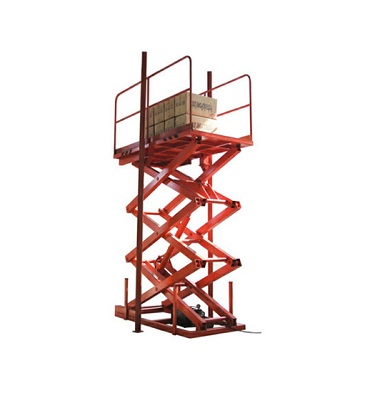

Name:QSJT Light Duty  Scissors lift Electric Elevator
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
 Hydraulic Motorcycle Lift
 Pneumatic Motorcycle Lift
 Electric Stationary Lift Table
 Circular Rotating Lift Table
 Electric Load and Unloading Lift Table
 Electric Scissors lift Elevator
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Safety clearance between scissors to prevent from trapping.

2.Installed aluminum safety bar to prevent from trapping while descending.

3.Built-in relied valve and compensation flow control valve to fulfill overload protection and control lowering speed.

4.There is safety valve to stop the table or keep slow descending in case of hose burst.

5.Self-lubricating bushing in all pivot points to prolong the lifespan.

Specifications:

Model



QSJT0.5-3

QSJT0.5-4

QSJT0.5-6

QSJT0.5-7.5

QSJT0.5-9

Capacity

kg

500

500

500

500

500

Raised Height

mm

3000

4000

6000

7500

9000

Min Height

mm

700

750

750

870

1000

Max Height

mm

3700

4750

6750

8370

10000

Platform Size

mm

1800×1200

2300×1200

2300×1200

2300×1200

2300×1200

Lifting time

s

40

42

80

80

80

Power

kw

2.2

3

3

3

3

N.W

kg

790

1020

1360

1530

1700
