Products – Stationary Lift Platform

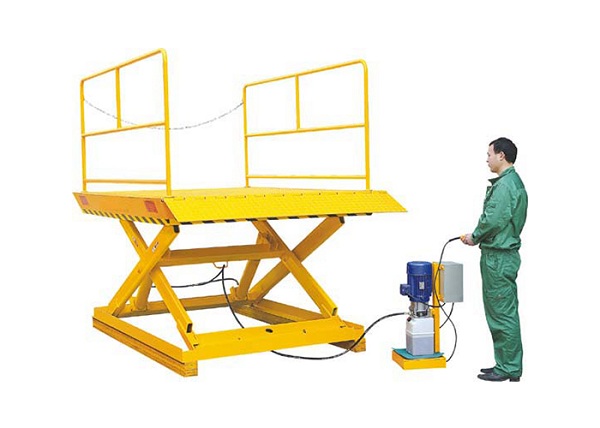

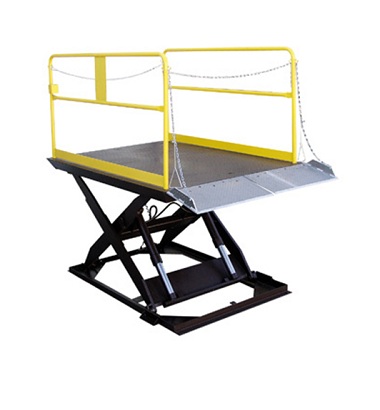

Name:ALT Electric Load and Unloading Lift Table(ALT27 ALT10 ALT20)
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
 Hydraulic Motorcycle Lift
 Pneumatic Motorcycle Lift
 Electric Stationary Lift Table
 Circular Rotating Lift Table
 Electric Load and Unloading Lift Table
 Electric Scissors lift Elevator
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Designed for industrial heavy duty applications(as part of a production process,for machine feeding or stacking etc.)

2.Double acting hydraulic cylinders.

3.Lifting limit switch.

4.Alum. table frame protects workers from injury by cutting off power.

Specifications:
MODEL     ALT27 ALT 10 ALT 20
Capacity kg kg 2700 1000 2000
Max. lift height L4 mm 1700 1080 1080
Min. height of table L3 mm 220 165 165
Lifting height   mm 1480 915 915
Table size L1 x L2 mm 2445x1830x195 1220x610x70 1220x610x70
Moter power   kw 3 1.5 1.5
Input voltage   V 220/380 220/380 220/380
Lifting speed   S 40 12 25
Lowering speed   mm/s <150 <150 <150


Previous:SLT50 Electric Load and Unloading Lift Table (TL5000)Next:HL Low Profile Electric Load and Unloading Lift Table(HL500 HL750 HL1000 HL1500)Return
