Products – Stationary Lift Platform

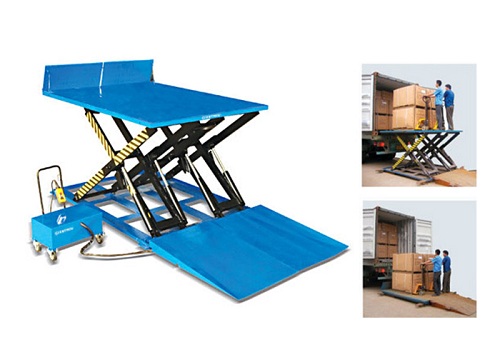

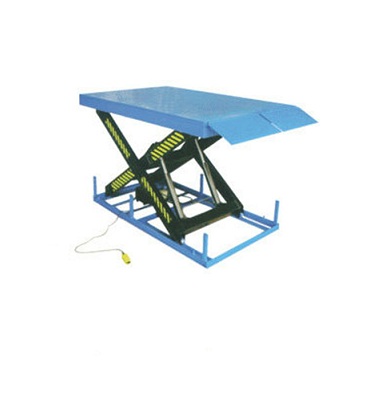

Name:DLT25 Electric Load and Unloading Lift Table (YH2500)
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
 Hydraulic Motorcycle Lift
 Pneumatic Motorcycle Lift
 Electric Stationary Lift Table
 Circular Rotating Lift Table
 Electric Load and Unloading Lift Table
 Electric Scissors lift Elevator
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Heavy duty design

2.Economic range for loading and unloading goods with stacker or hand pallet truck

3.Removable lifting eye to facilitable handling and loading table installation

4.Meet EN 1570 norm and ANS/ASME safety standard.

Specifications:
Model
DLT25
Capacity kg 2500
Lowered Height mm 130
Raised Height mm 1700
Platform Size LxW mm 2000x2600
Base Frame Size mm 1900x2510
Lift Speed sec. 60-70
Power Pack kw 380/50Hz, AC 2.2Kw
Net Weight kg 1700
Previous:ZXT25 Electric Load and Unloading Lift TableNext:SLT50 Electric Load and Unloading Lift Table (TL5000)Return
