Products – Stationary Lift Platform

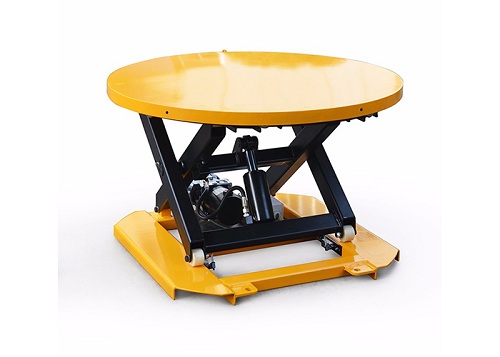

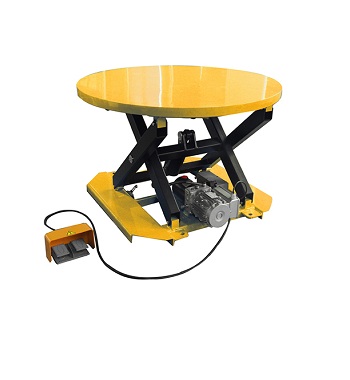

Name:ESP Electric Rotating Lift Table(ESP1000 ESP2000)
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
 Hydraulic Motorcycle Lift
 Pneumatic Motorcycle Lift
 Electric Stationary Lift Table
 Circular Rotating Lift Table
 Electric Load and Unloading Lift Table
 Electric Scissors lift Elevator
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Ergonomic design, easy and efficient stacking operation, saving physical strength

2.High quality hydraulic pump station and explosion-proof valve design make lifting operation safer and more reliable

3.Scissor bracket structure, better overall stability

4.360 ° rotating table, easy to operate in any direction

5.The base is designed with slotting, which is convenient for the overall movement, handling and loading and unloading

6.Non standard size can be customized according to the demand, and can be made of 304 stainless steel

Specifications:

Model



ESP1000

ESP1000A

ESP2000

Rated Capacity

kg

1000

1000

2000

Platform Size

mm

φ1110

φ1110

φ1110

Base Frame Size

mm

920*930

920*930

920*930

Lowered Height H2

mm

300

130

300

Raised Height H1

mm

710

390

710

Power Pack

V/Kw

380v/0.75kw

380v/1.1kw

380v/2.2kw

Net Weight

kg

163

215

176
