Products – Stationary Lift Platform

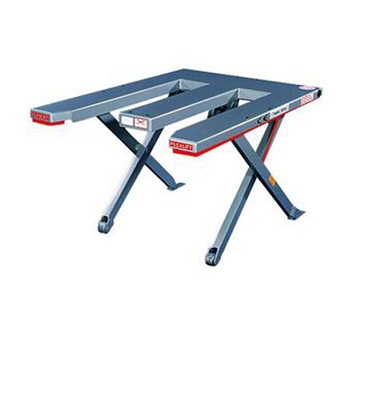

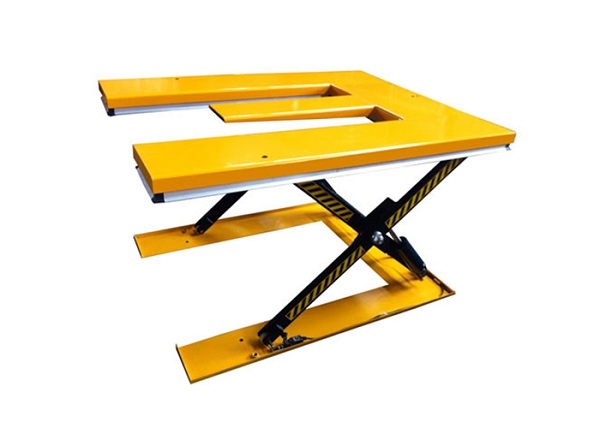

Name:HE “E”Shape Electric Stationary Lift Table
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
 Hydraulic Motorcycle Lift
 Pneumatic Motorcycle Lift
 Electric Stationary Lift Table
 Circular Rotating Lift Table
 Electric Load and Unloading Lift Table
 Electric Scissors lift Elevator
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.E shaped top platform;
2. E shaped table are specially for handling pallets;
3. E shaped table are manufactured to all European safety standards. Include EN1570:1990;
4. Remote power pack with pedestal and controls, upper platform fitted, with safety perimeter to prevent contact with obstructions;
5. 24V control box with up and down buttons and emergency stop.


Specifications:

Model



HE500

HE1500

HE2000

Capacity

kg

500

1500

2000

Max.Height

mm

885

885

820

Collapsed Height

mm

85

85

100

Platform L×W

mm

1400×1200

1500×1300

1500×1300

Lifting Time

s

25~35

30~40

30~40

Power Pack

kw

380V/50Hz,AC0.75KW

380V/50Hz,AC1.5KW

380V/50HZ,AC2.2KW

Net Weight

kg

207

380

500

Previous:HU "U"Shape Electric Stationary Lift Table (HU600 HU1000 HU1500 HU2000)Next:HY Low Profile Electric Stationary Lift TableReturn
