Products – Stationary Lift Platform

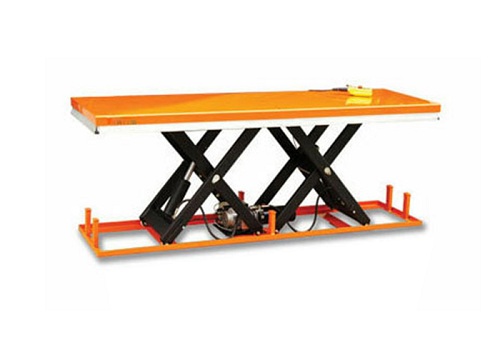

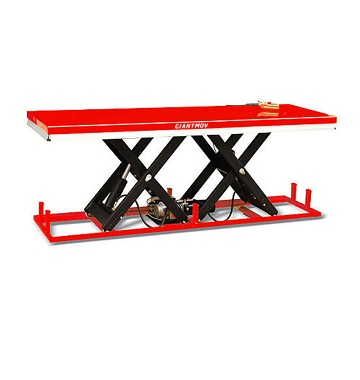

Name:HW-D Double Scissors Electric Stationary Lift Table(HW2000D HW4000D)
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
 Hydraulic Motorcycle Lift
 Pneumatic Motorcycle Lift
 Electric Stationary Lift Table
 Circular Rotating Lift Table
 Electric Load and Unloading Lift Table
 Electric Scissors lift Elevator
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.

2.Low-tention(24V)control box with up-down buttons.

3.Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

4.Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

5.Safety clearance between scissors to prevent trapping during operation.

Specifications:
Model   HW2000D HW4000D HW8000D
Rated capacity kg 2000 4000 8000
Table dimension mm 2500×820 2500×850 3000×1200
Base plate size mm 2460×640 2450×785 2950x1050
Min./Max height mm 205/1000 230/1000 240/1050
Lifting time s 36-46 26-36 25-36
Power statistics   380/50HZ 380/50HZ 380/50HZ
Net weight kg 265 360 420
Previous:HW Electric Stationary Lift Table(HW500L HW501 HW502)Next:HU "U"Shape Electric Stationary Lift Table (HU600 HU1000 HU1500 HU2000)Return
