Products – Stationary Lift Platform

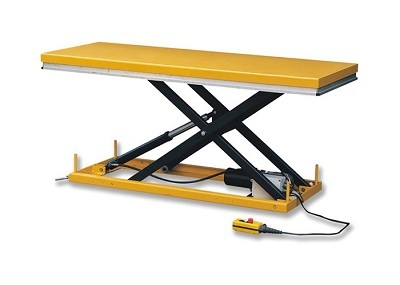

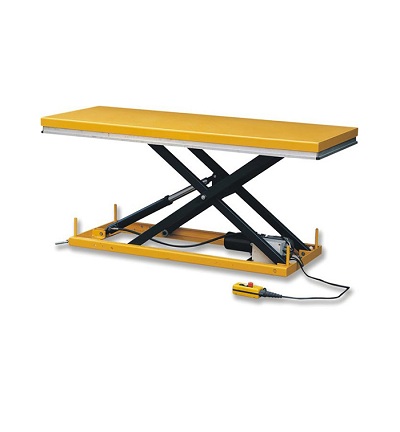

Name:HW Electric Stationary Lift Table(HW500L HW501 HW502)
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
 Hydraulic Motorcycle Lift
 Pneumatic Motorcycle Lift
 Electric Stationary Lift Table
 Circular Rotating Lift Table
 Electric Load and Unloading Lift Table
 Electric Scissors lift Elevator
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.The electric lifting platform is fitted with safety wedge block, providing convenience for maintenance.

2.With super large table board, this large table lifting platform can be used to lift large size goods.

3.It is widely used for manufacturing and repairing work.

Specifications:
Model
HW500L HW501L HW502L
Rated capacity kg 500 500 500
Table dimension mm 2000×800 1300×600 1300×800
Base plate size mm 1615×680 1210×585 1210×585
Min./Max height mm 200/1000 180/1000 180/1000
Power parameters
380/50HZ 380/50HZ 380/50HZ
Net weight kg 193 121 131


Previous:HT Triplex Scissors Electric Stationary Lift Table (HT1000 HT2000)Next:HW-D Double Scissors Electric Stationary Lift Table(HW2000D HW4000D)Return
