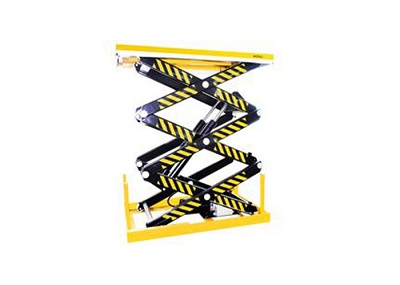

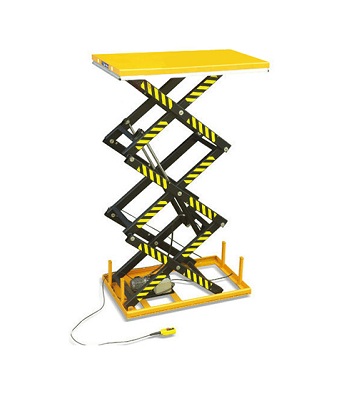

Name:HT Triplex Scissors Electric Stationary Lift Table (HT1000 HT2000)
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
 Hydraulic Motorcycle Lift
 Pneumatic Motorcycle Lift
 Electric Stationary Lift Table
 Circular Rotating Lift Table
 Electric Load and Unloading Lift Table
 Electric Scissors lift Elevator
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.

2.Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

3. Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

4.Safety clearance between scissors to prevent trapping during operation.

Specifications:
Model   HT1000 HT2000
Type   three-scissor
Capacity Kg 1000 2000
Lowered Height mm 470 560
Raised Height mm 3000 3000
Platform Size mm 1700x1000 1700x1000
Base Frame Size mm 1600x1000 1606x1010
Lift Time (sec) 35-45 50-60
Power Pack
Net Weight kg 450 750


Previous:HD Double Scissors Electric Stationary Lift TableNext:HW Electric Stationary Lift Table(HW500L HW501 HW502)Return
