Products – Stationary Lift Platform

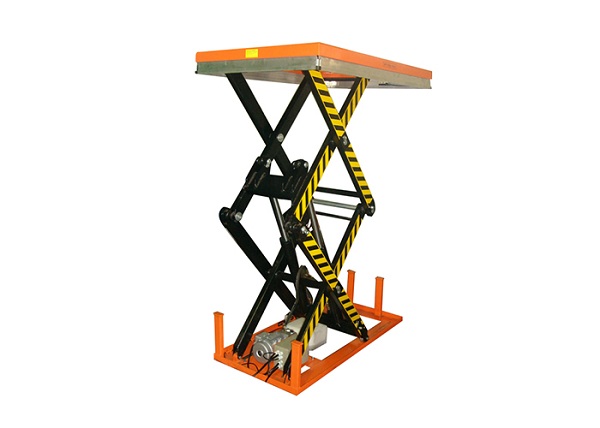

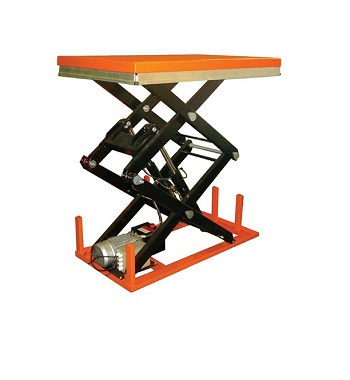

Name:HD Double Scissors Electric Stationary Lift Table
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
 Hydraulic Motorcycle Lift
 Pneumatic Motorcycle Lift
 Electric Stationary Lift Table
 Circular Rotating Lift Table
 Electric Load and Unloading Lift Table
 Electric Scissors lift Elevator
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Heavy duty design, 380V/50HZ AC power source

2.The high quality pump station enables the electric lifting platform to lift goods stably.

3.This hydraulic platform is provided with anti-clamping function and overload protection function.

4.It is fitted with safety wedge block for easy maintenance.

5.The electric lifting platform can be used to facilitate warehousing, transporting, manufacturing and repairing works.

Specifications:

Model



HD1000

HD2000

HD4000

Capacity

Kg

1000

2000

4000

Platform Size

mm

820×1300

850×1300

1700×1200

Base Size

mm

640×1240

478×1220

1600×900

Table-board

mm

305/1700

360/1780

400/2050

Min/Max.height

Lifting time

s

35-45

35-45

55-65

Power



380V/50Hz,AC2.2KW

380V/50Hz,AC2.2KW

380V/50Hz,AC2.2KW

N.W

Kg

210

295

520



Previous:HW Electric Stationary Lift TableNext:HT Triplex Scissors Electric Stationary Lift Table (HT1000 HT2000)Return
