Products – Stationary Lift Platform

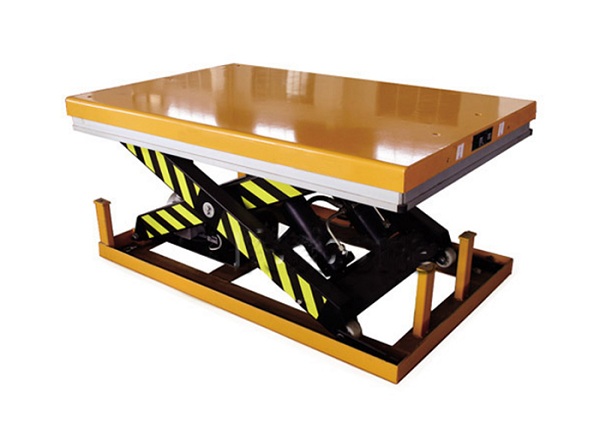

Name:HW Electric Stationary Lift Table
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
 Hydraulic Motorcycle Lift
 Pneumatic Motorcycle Lift
 Electric Stationary Lift Table
 Circular Rotating Lift Table
 Electric Load and Unloading Lift Table
 Electric Scissors lift Elevator
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Our large table lifting platform uses high quality pump station, so goods can be lifted stably.

2.In the event that platform encounters obstacles during descending process, the safety barrier strip under the platform can ensure the safety.

3.The anti-clamping scissor forks can prevent injuries.

4.The hydraulic platform is provided with overload protection function, ensuring the safety and reliability.

5.The electric lifting platform is fitted with safety wedge block, providing convenience for maintenance.

6.With super large table board, this large table lifting platform can be used to lift large size goods.

7.It is widely used for manufacturing and repairing work.

Specifications:

Model



HW500L

HW501L

HW502L

Rated capacity

kg

500

500

500

Table dimension

mm

2000×800

1300×600

1300×800

Base plate size

mm

1615×680

1210×585

1210×585

Min./Max height

mm

200/1000

180/1000

180/1000

Lifting height

s

16-26

10-15

10-15

Power parameters



380/50HZ

380/50HZ

380/50HZ

Net weight

kg

193

121

131
