Products – Stationary Lift Platform

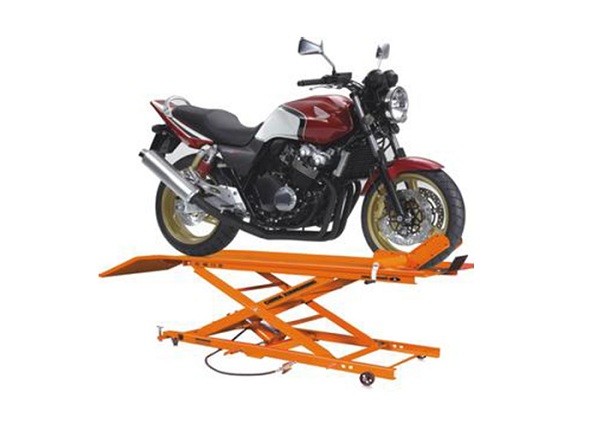

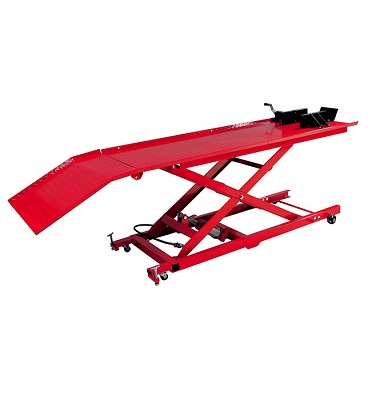

Name:MET Pneumatic Motorcycle Lift (MET800H MET800H1 MET1000H MET1000H1)
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
 Hydraulic Motorcycle Lift
 Pneumatic Motorcycle Lift
 Electric Stationary Lift Table
 Circular Rotating Lift Table
 Electric Load and Unloading Lift Table
 Electric Scissors lift Elevator
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.Heavy duty design for professional applications.
2.Easily to lift by foot operated hydraulic pump.
3.Latest design of scissor structure ensures durability and stability.
4.The operator’s safety is ensured by a overload valve and mechanical stopping devices that are always engaged, both lifting and lowering can be stopped at any position still keep the conditions of stability and safety unchanged.
5.This lift is equipped with a special mechanical vice to block the front wheel.
6.Platform is completed with an extractable panel to facilitate dismounting of the back wheel without being obliged to remove the lifting slide.
7.A built-in overload valve in high quality hydraulic pump.
Specifications:

Model



MET808H

MET808H1

MET1000H

MET1000H1

Load Capacity

kg

400

400

500

500

Lowered height

mm

235

235

220

220

Raised Height

mm

740

740

760

760

Packing Dimensions

mm

1470x710x280

1470x710x280

1900x800x320

1900x800x320

Net Weight

kg

100

98

125

123

QTY/1x40"GP

units

170

170

84

84


Previous:TE500 Hydraulic Motorcycle Lift  Heavy duty designNext:MXC76 Pneumatic Motorcycle LiftReturn
