Products – Stationary Lift Platform

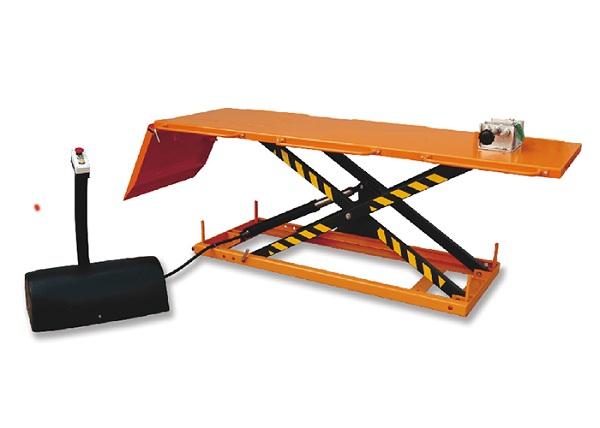

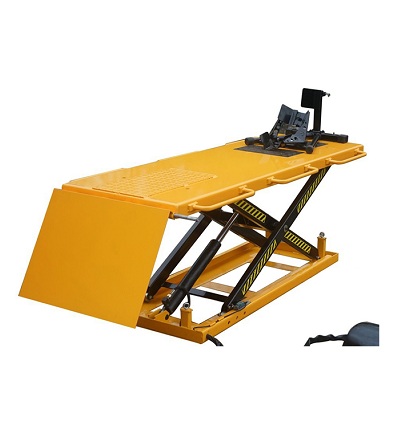

Name:TE500 Hydraulic Motorcycle Lift  Heavy duty design
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
 Hydraulic Motorcycle Lift
 Pneumatic Motorcycle Lift
 Electric Stationary Lift Table
 Circular Rotating Lift Table
 Electric Load and Unloading Lift Table
 Electric Scissors lift Elevator
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1. Heavy duty design for professional applications.
2. Latest design of scissor structure ensures durablity and stability.
3. This lift is equipped with a special mechanical dvice to block the dismounting of the back wheel without being obliged to remove the lifting slide.
4. High quality power pack made in Europe.
Specifications:

Model



TE500

Max. Capacity

(kg)

500

Max. Platform Height

(mm)

800

Min. Platform Height

(mm)

170

Platform Size

(mm)

2200x700

Lifting Time

(s)

8/15

Power Pack



380V/50HZ, AC 1.1kw

Net Weight

(kg)

240
