Products – Stationary Lift Platform

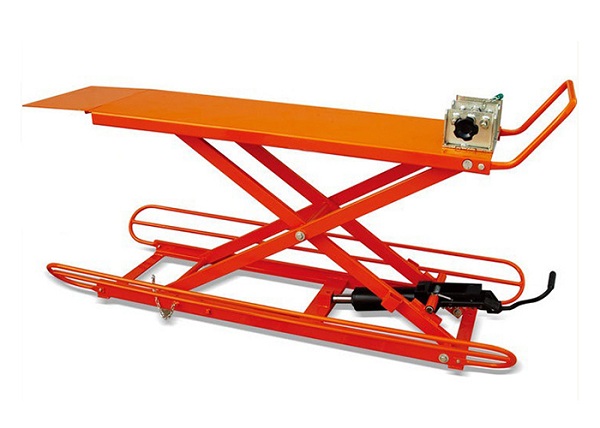

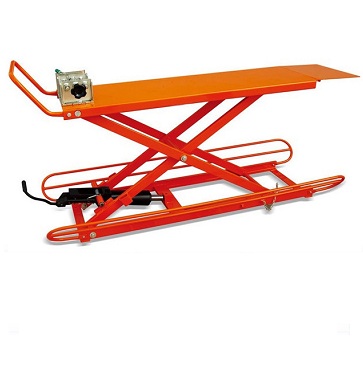

Name:TC150 Hydraulic Motorcycle Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
 Hydraulic Motorcycle Lift
 Pneumatic Motorcycle Lift
 Electric Stationary Lift Table
 Circular Rotating Lift Table
 Electric Load and Unloading Lift Table
 Electric Scissors lift Elevator
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1. Heavy duty design for professional applications.
2. The lift is manufactured work both indoors and outdoors.
3.Easily to lift by foot operated hydraulic pump.
4.This lift is equipped with a slot on the loading platform that permits taking the rear wheel off.
5.The operator's safety is ensured by a overload valve and
6.mechanical stopping devices that are always engaged, both lifting and lowering can be stopped at any position still keep the conditions of stability and safety unchanged.
Specifications:

Model



TC150

Max. Capacity

kg

150

Max. Platform Height

mm

1070

Min. Platform Height

 mm

145

Platform Size

mm

1400x470

Foot Pedal to Max. Height

mm

40

Net Weight

kg

100
