Products – Scissor Lift Platform

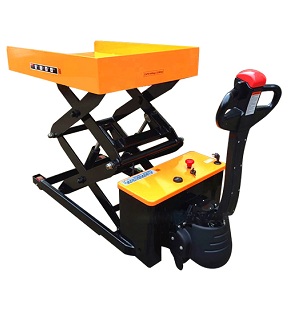

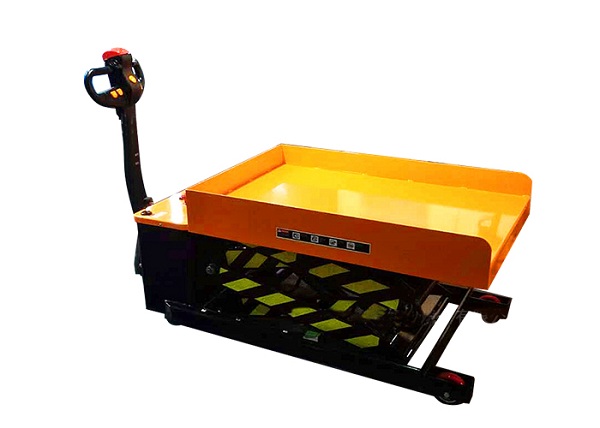

Name:ET100-150 Full Electric Table Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.The operator's safety is ensured by a overload valve and mechanical stopping devices .

2.When lifting and lowering , it can be stopped at any position and still keep the stability and safety .

Specifications:

Model




ET100-150

Load capacity

kg

1000

Table dimension

mm

1200*800

Min.height

mm

400

Max.height

mm

1500

Lifting time

s

20

Voltage

v

24

Drive Motor Power

kw

0.75

Lifting Motor Power

kw

1.6

Battery

AH

75*2

Charger input voltage

v/A

220/15

Previous:ET50-160 Full Electric Table LiftNext:PT Post Lift TableReturn
