Products – Scissor Lift Platform

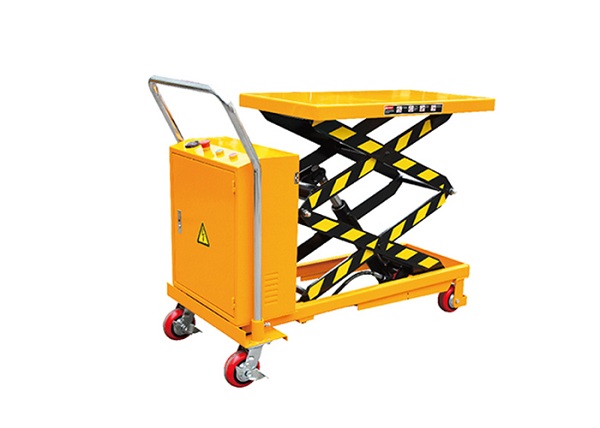

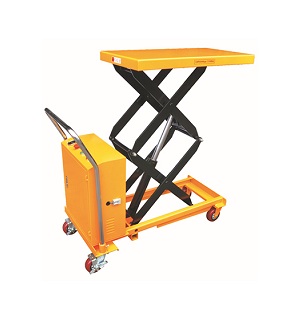

Name:DPS350 Double Scissors Electric Table Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Valuable material handling for use as a feeding table on assembly line.

2.Structural heavy duty steel construction.

3. Easy action foot operated hydraulic lift for raising table top to desired level.

4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.

5. Hand operated table descent control.

Specifications:

Model




DPS350

Load capacity

kg

350

Min.height

mm

350

Max.height

mm

1300

Table dimension

mm

905*500*50

Dia.of the wheel

mm

125

Voltage

v

12

Power

w

800

Storage Battery

Ah

65

Charger input Voltage

v

220/110

Net weight

kg

140
