Products – Scissor Lift Platform

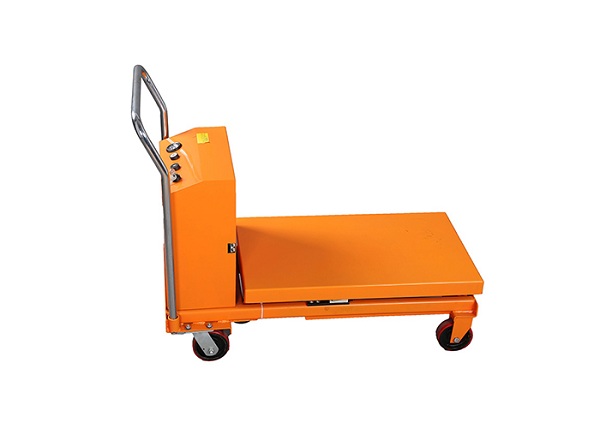

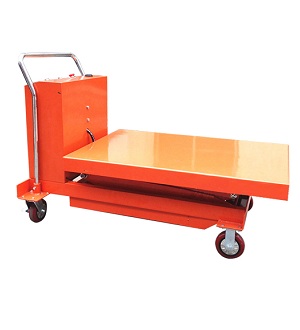

Name:DP300 DP500 DP800 DP1000 Single Scissor Electric Table Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Valuable material handling for use as a feeding table on assembly line.

2.Structural heavy duty steel construction.

3. Easy action foot operated hydraulic lift for raising table top to desired level.

4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.

5. Hand operated table descent control.

Specifications:

Model




DP300

DP500

DP800

DP1000

Load capacity

kg

300

500

800

1000

Min.height

mm

280

280

410

410

Max.height

mm

900

900

1000

1000

Table dimension

mm

950*500*50

950*500*50

1200*610*50

1200*610*50

Dia.of the wheel

mm

125

125

150

150

Voltage

V

12

12

12

12

Power

Kw

0.8

0.8

0.8

0.8

Storage Battery

Ah

60

60

60

120

Charger input Voltage

V

220/110

220/110

220/110

220/110

Net weight

kg

110

110

150

150
