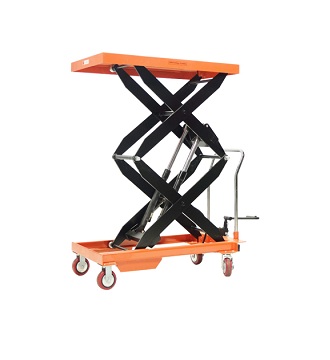

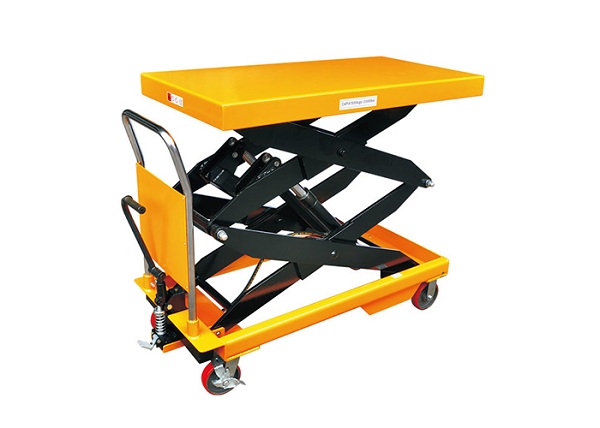

Name:CYT750Y Scissors Pneumatic Table Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Valuable material handling for use as a feeding table on assembly line.

2.Structural heavy duty steel construction.

3. Easy action foot operated hydraulic lift for raising table top to desired level.

4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.

5. Hand operated table descent control.

Specifications:

Model




CYT750Y

Load capacity

kg

750

Min.height

mm

360

Max.height

mm

1000

Table dimension

mm

1000×512×55

Length

mm

1170

Length of handle

mm

1020

Net weight

kg

116

Previous:CYT300Y CYT500Y Scissor Pneumatic Table LiftNext:CYT1000Y Scissors Pneumatic Table LiftReturn
