Products – Scissor Lift Platform

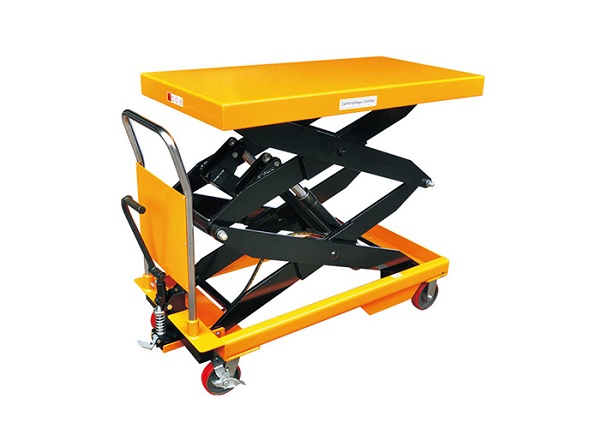

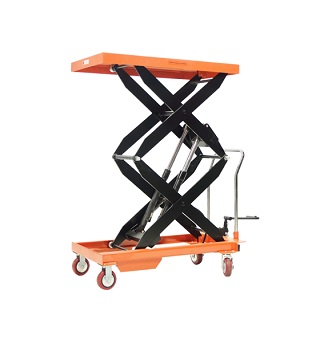

Name:CYT300Y CYT500Y Scissor Pneumatic Table Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
 01 Hand Hydraulic Table Lift
 02 Double Scissors Hydraulic Table Lift
 03 Three Scissors Hydraulic Table Lift
 04 Pneumatic Table Lift
 05 Semi-Electric Table Lift
 06 Full Electric Table Lift
 07 Post Lift Table
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Valuable material handling for use as a feeding table on assembly line.

2.Structural heavy duty steel construction.

3. Easy action foot operated hydraulic lift for raising table top to desired level.

4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.

5. Hand operated table descent control.

Specifications:

Model



CYT300Y

CYT500Y

Load capacity

kg

300

500

Min.height

mm

285/380

290/390

Max.height

mm

900

900

Table Dimension

mm

820×500×50

820×500×55

Length

mm

1200

1200

Length of height

mm

980

980

Net weight

kg

80

85
