Products – Scissor Lift Platform

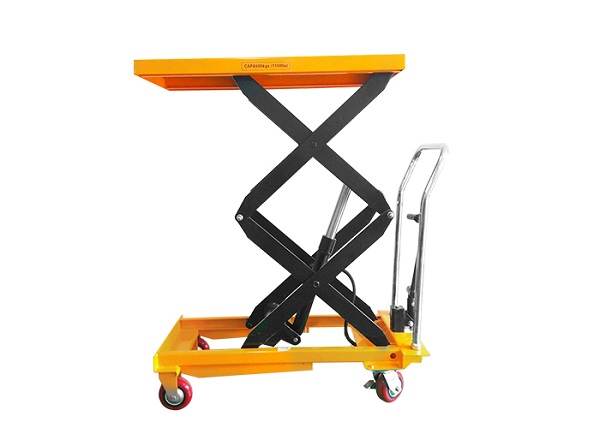

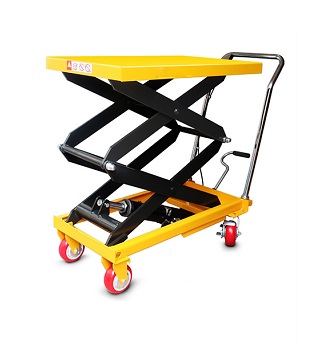

Name:PTS150 PTS350A PTS350AA Double Scissors Hydraulic Table Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1. Valuable material handling for use as a feeding table on assembly line.

2.Structural heavy duty steel construction.

3.  Easy action foot operated hydraulic lift for raising table top to desired level.

4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.

5.  Hand operated table descent control.

Specifications:

Model



PTS150

PTS350A

PTS350AA

Load Capacity

KG

150

350

350

Min. Height

MM

302

360

360

Max. Height

MM

1260

1300

1500

Table Dimension

MM

700*450*35

905*500*50

905*500*50

Dia.of the wheel

MM

Φ100

Φ125

Φ125

Net Weight

KG

51

99

99

Packing Dimensions

MM

820*470*325

1010*520*380

1010*520*380

Load in 20'Container

PC

144

100

100
