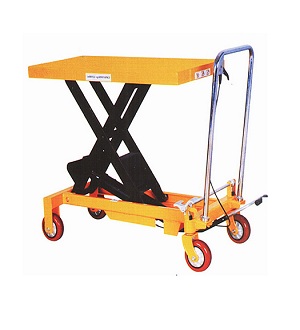

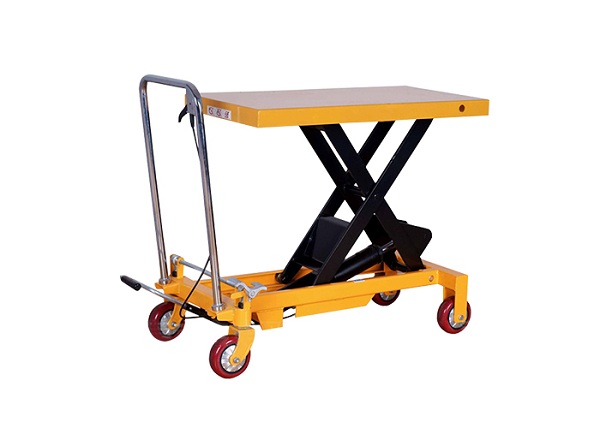

Name:PT800A PT1000A Single Scissor Table Lift (unfordable Handle)
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1. Heavy-duty steel construction features to provide the best performance.

2. A large work platform to handle bulky loads.

3. Overload relief valve, top of stoke by pull.

4.Reduces physical effort and considerably improve the ergonomic conditions at work stations by raising the truck to the desired height.



Specifications:

Model



PT800A

PT1000A

Load Capacity

kg

800

1000

Min. Height

mm

415

415

Max. Height

mm

1000

1000

Table Dimension

mm

1016*510*60

1016*510*60

Dia.of the wheel

mm

Φ150

Φ150

Net Weight

kg

99

99

Packing Dimensions

mm

1140*570*425

1140*570*425

Load in 20'Container

pc

80

80

Previous:PT300B PT500B Hand Single Sicssor Table LiftNext:PT300C PT500C PTS350C PT100C Scissor Table LiftReturn
