Products – Scissor Lift Platform

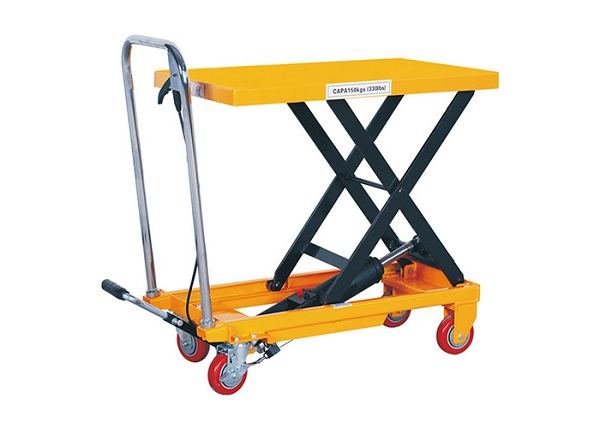

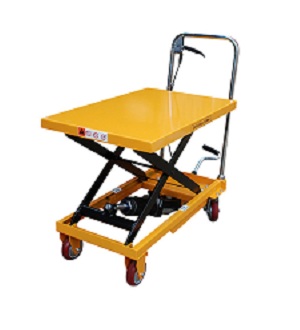

Name:PT150A PT300A PT500A Hand Single Scissor Table Lift (unfordable handle)
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
With CE certification ,meet safety standards.

Convenient electric and hydraulic system scissor design for easy lifting, lowering.

Applicable to various industries, especially in warehousing, logistics, manufacturing,  industries

Custom design and specs available.

Specifications:

Model



PT150A

PT300A

PT500A

Load Capacity

kg

150

300

500

Min. Height

mm

210

280

280

Max. Height

mm

720

900

900

Table Dimension

mm

700*450*35

815*500*50

815*500*50

Dia.of the wheel

mm

Φ100

Φ125

Φ125

Net Weight

kg

42

71

76

Packing Dimensions

mm

820*470*230

900*510*310

900*510*310

Load in 20'Container

kg

192

144

144

Previous:PT150Z PT300Z PT500Z Hand Single Scissor Table Lift (fordable handle)Next:PT300B PT500B Hand Single Sicssor Table LiftReturn
