Products – Oil Drum Tool and Accessories

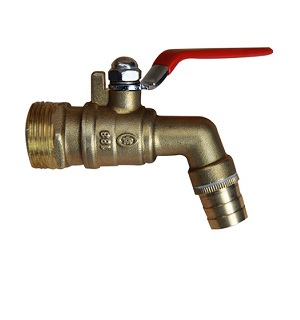

Name:TY-C12 Drum Facets
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.Designed to control the flow of liquid from your drums

2. Drum Faucets allow you to start, stop or adjust the flow while you dispense from your drum

3. Nominal pressure: ≤1.0 MPa;

4. Actual valve pressure: ≤1.6 MPa;

5. Suitable temperature (hydraulic): - 5 degree≤ t ≤ 120 degree

6. Thread standard: 55 degree internal thread (GB/T8464-1998)

7. Thread diameter: 20.3±0.3

Specifications:

Model

TY-C12

Name

Brass Drum Valve

Net weight

0.14KG

Specification

0.5”DN15=G1/2

Previous:TY10 Drum WrenchesNext:TY-C50 Drum FacetsReturn
