Products – Below-Hook or Hoist Drum Lifter

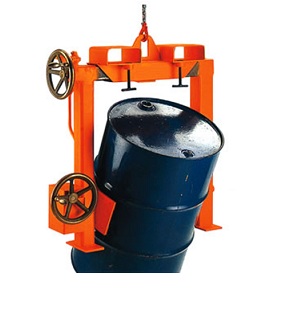

Name:LZ800/1100 Multi-funcation Drum Rotating Tongs
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
 01 Vertical Drum Lifter
 02 Drum Dispenser
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1. Designed primarily for sitting under an overload crane for decanting the contents of 30~55 Gallons steel drums or 210 litre ‘L’ and ‘XL’ plastic drums.

2. The drum locks positively into the attachment using a single over centre clamp and steel girdle.

3.Rotation is by means of a crank handle, through a heavy duty gearbox.

4. Fitted with fork pockets for alternative use with a fork lift truck

Specifications:

Model




LZ800

LZ1100

Capacity

kg(lbs)

365(800)

500(1100)

Drum Size

mm

30~55 gallon steel, 210L plastic

Flipping Angle




360°

Net Weight

kg

78

97
