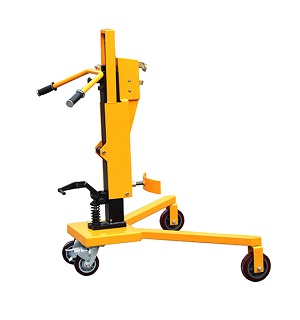

Name:DT350C Portable Drum Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter and Handler
 Drum Carrier and Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

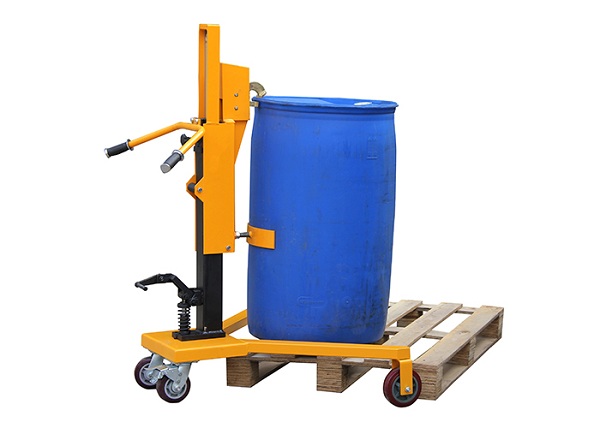

1.Ergonomic solution for lifting, transporting and placing 55 gallon rimmed steel drums and 200L rimmed plastic drums on spill or standard pallets;

2.Eagle-grip structure,

3.DT400C is with adjustable supporting legs, optional single Eagle-grip and double Eagle-grip;

Specifications:

Model

DT350C

Lifting Capacity

(kg/lbs)

350/770

Drum Size

572mm (22.5"Diameter), 210Lifters (55 gallon)

Lifting Height

(mm/inch)

250/9.8"

Lfiting Per Stroke

(mm/inch)

22/0.87”

Outline Dimensions

mm

950x1130x1180

Straddle leg width

mm

920

Wheel size

mm

150x50 125x50

Net Weight

(kg/lbs)

42/93


Previous:DTW250 Portable Drum TruckNext:DY350A-1 Hand Drum PorterReturn
