Products – Portable Drum Handling Equipment

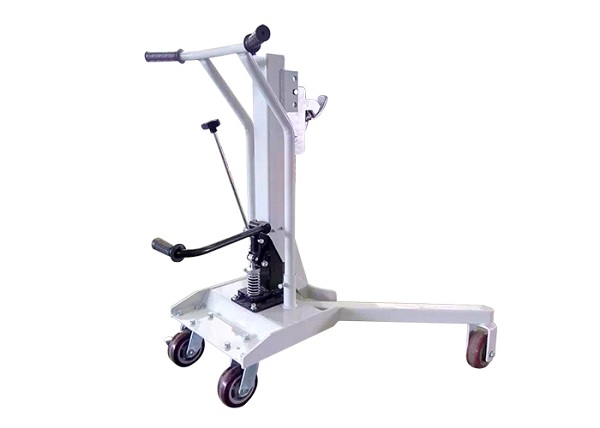

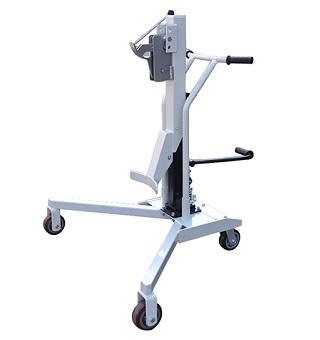

Name:DY350C-1 Hand Drum Porter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.Design of right-angular leg can be suitable to handle the drums angulary on the pallet
2.High lift, heavy-duty, durable, multifunctional
3.Suitable for 30~55 gallon steel or 210L plastic drums
Specifications:

Model



DY350C-1

Rated Capacity

kg

350

Drum type

mm

30~55gallon steel drum 210L plastic drum

Lifting height

mm

450

Straddle inner width

mm

920

Wheel size

mm

φ180/φ130 4

Overall size

mm

850*1100*1100

Net weight

kg

78

Previous:HT350A-1 Hand Drum TransporterNext:DTF450-1 Portable Drum TruckReturn
