Products – Portable Drum Handling Equipment

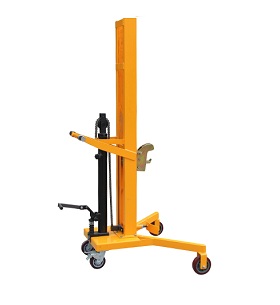

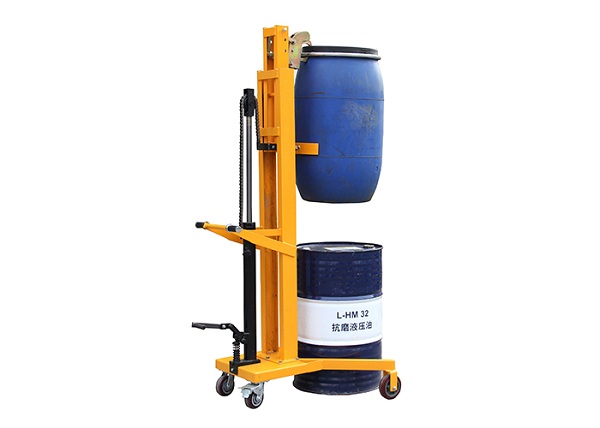

Name:DTF450C Portable Drum Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter and Handler
 Drum Carrier and Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Heavy-duty design of 450 KG loading weight; lift with pedals; Ergonomic handle is easy and safe to operate with Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, maximum lifting height:1100mm
Automatic clamping tight the oil drum during lifting which is safety and reliable
Fit for handling oil drums placed along pallet edges or corners; carry oil drums from the direction of diagonal line of pallet
With electronic scale built-in; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰
Applicable for transferring, weighting, stacking and pallet loading & unloading, etc. of all kinds of oil drums.
Note: Electronic weighting device is built in DTF450C-1; eagle gripper is optional to equip
Specifications:

Model

DTF450C

Load Capacity

kg

450

Drum Size

30 Gallon Steel Drum (Ø450x700), Gallon Steel Drum (Ø572x900), or 210L Plastic Drum

Lifting Height

mm

1100

Outline Dimensions

mm

1140×950×1870

Front Wheel

mm

Φ150×50(PU)

Rear Wheel

mm

Φ125×50(PU)

Inner width of Front Leg

mm

920

Outer Width of Front Leg

mm

1140

Self-Weight

kg

130

Previous:DE450 Mechanical Hand Drum TruckNext:DTF450C-1 Portable Drum Truck with ScaleReturn
