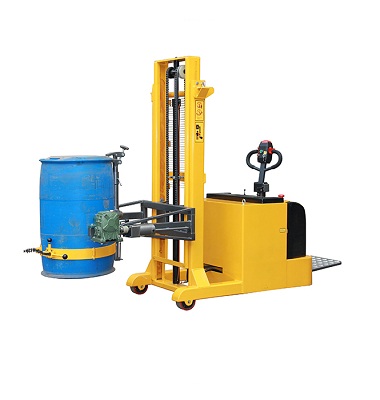

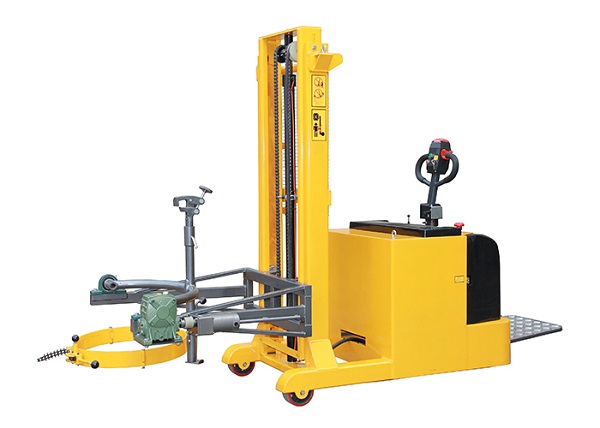

Name:YL420A Full Electric Hydraulic Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1. Max. Load capacity 420kg;
2. Power drive, transport, lift and tilt 55 gallon steel drums;
3. Imported electrical vehicle exclusive walking control system;
4. With manned pedal and can be operated by one people, labor saving and high work efficiency;
5. With step-less speed regulator, high-power reversing switch, integrated hydraulic pump stations, power walking driving wheel;
Specifications:
Model YL420A
Drive type / Electric
Operating type / Standing steer type
Rated load capacity kg 420
Lifting height mm 2400
Total height mm 1860
Total length mm 2270
Total width mm 1170
Turning radius mm 2120
Max. Grade ability (Fully-loaded/no-loaded) % 3/5
Driving wheel size mm Ø250*80
Tire / Polyurethane
Brake type / Electromagnetic braking
Drive motor power kw 1.2
Lifting motor power kw 2.2
Noise level db(A) <70
Battery voltage/capacity V/Ah 24/210
Charger V/A 24/30
Net weight kg 1100
Drum rotating range ° 135
