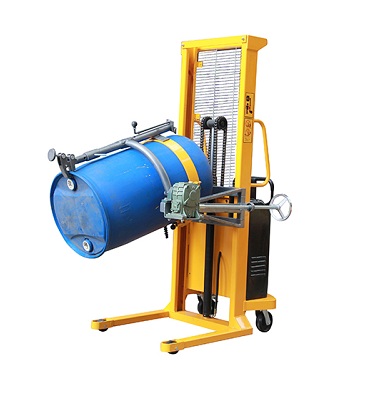

Name:YL520A Semi-Electric Hydraulic Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
- High quality hydraulic power unit and maintenance-free battery;
- Special rolling technology of C-type frame is with strong security;

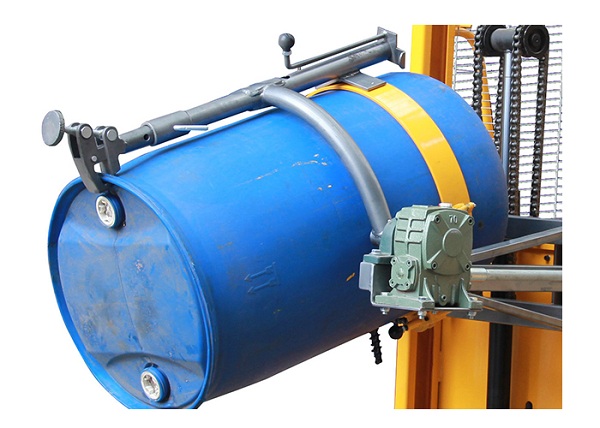

- Combined Eagle-grip and Anchor ear structure, suitable for electric rotation of steel drums and plastic drums;
Specifications:
Model YL520
Loading weight kg 520
Drum size 55 gallon ( (Ø572x900) steel, 210L plastic
Lifting Height mm 1600
Wheel Dimension mm Ø80x55/Ø150x50
Inner/Outer Width of Front Leg mm 640/800
Turning Radius mm 1750
Pump Unit Power KW/h 1.5
Battery Parameter Ah/V 120/12
Lifting Speed mm/s 120
Outline Dimension (LxWxH) mm 1400*1000*2060
Net weight kg 264
