Products – Forklift Mounted Drum Grab

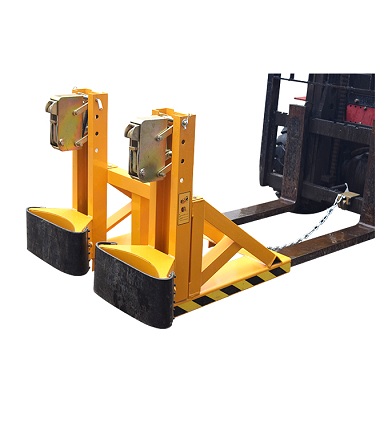

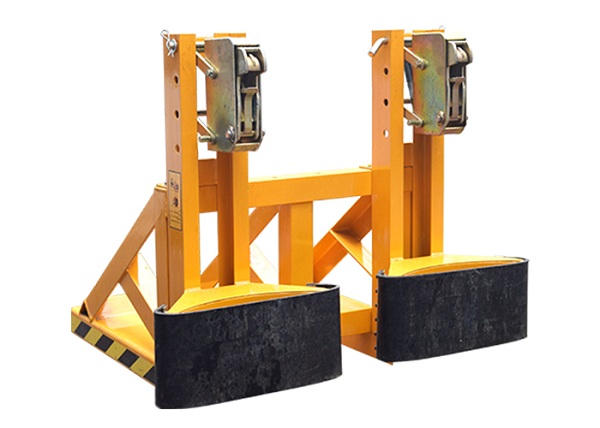

Name：DG1200C Single Gator Grip Heavy Duty Forklift Mounted Drum Grab with Rubber Belt
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
 01 Forklift Mounted Single Drum Clamp
 02 Standard Duty Forklift Mounted Drum Handler
 03 Heavy Duty Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
The DG1200C are available with the same standard features and same handling ability. Either attachment has one or two heads, with two heads decreasing the stress on one drum when engaged to lift.
Features:
· The jaws of SINOLIFT forklift mounted Grabber are contoured to securely grasp various rimmed drums.
· Precision gripping mechanism is built to last.
· The drum movers handle virtually any rimmed drum, regardless of diameter.
· Require that the drum lid be in place on your drum.
· Move drums with damaged sides or straight walls.
· Works with or without pallets.
Handles many different drums:
· Rimmed steel, fiber or plastic drum
· Up to 1,500 lbs. per drum
· Require drum height of 24" or taller. Use these 55-gallon drum grabber forklift attachments for 30 or 85 gallon drums.
· Any diameter drum
· Straight walled or damaged drum

Specifications：

Model
DG1200C
Capacity kg 600*2
Net Weight kg 110
Overall Size mm 1050*970*850
Forks leg (length) mm 755
Straddle outline Width mm 750
Grab Min. Height mm 525
Grab Max. Height mm 750
Previous：DG1200A Single Gator Grip Heavy Duty Forklift Mounted Drum Grab with Hard PlastiNext：DG1200D Double Gator Grip Heavy Duty Forklift Mounted Drum Grab with Rubber BeltReturn
