Products – Forklift Mounted Drum Grab



Name：DG2000D Double Gator Grip Heavy Duty Forklift Mounted Drum Grab
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

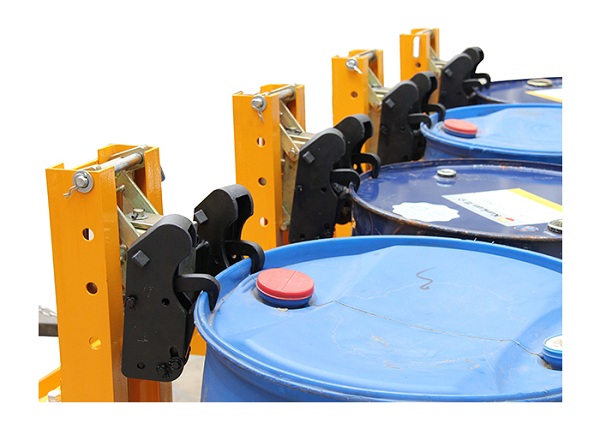

1.Double BLACK Eagle-Grip automatic clamping mechanism for handling steel, fiber and plastic drums in high volume applications.
2.Clamping mechanisms are completely mechanical, requiring no hydraulic or electrical connections.
3. Replaceable soft wear-resistant protective cushion effectively protects drums and absorbs vibration.
4.Positive action jaws insure safe transporting of drums without damage to drum chimes.
5.Fork mounted models can handle 1, 2, 3 OR 4 drums simultaneously.
6.Quick adjustable heads allow pickup of various drum heights. Standard heavy duty rubber belt bases support the lower side of the drum eliminating dents or cosmetic marring.

Specifications：
Model
　
DG2000D
Capacity
kg
500*4
Net Weight
kg
158
Overall Size
mm
2090*1100*850
Load Center
mm
1150
Grab Min. Height
mm
465
Grab Max. Height
mm
690
Grab Middle Height
mm
615--540
Foks leg (length*width)
mm
150*55
Straddle inner Width
mm
680
Staddle outline Width
mm
980
Straddle Length
mm
900
