Products – Forklift Mounted Drum Grab

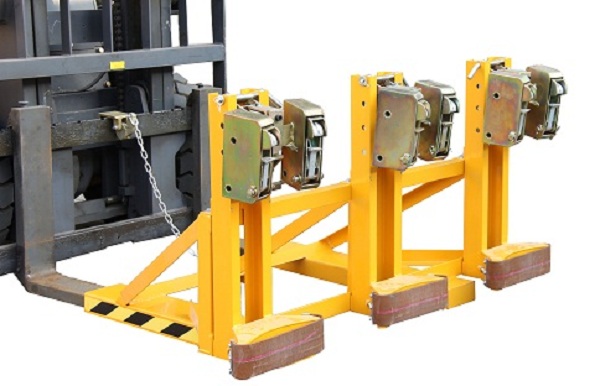

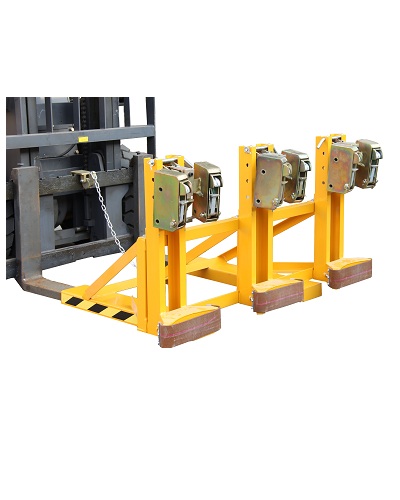

Name：DG1500B Double Gator Grip Heavy Duty Forklift Mounted Drum Grab
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
 01 Forklift Mounted Single Drum Clamp
 02 Standard Duty Forklift Mounted Drum Handler
 03 Heavy Duty Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
1.Double Eagle-Grip automatic clamping mechanism for handling steel and plastic drums in high volume applications.
2.Clamping mechanisms are completely mechanical, requiring no hydraulic or electrical connections.
3. Replaceable soft wear-resistant protective cushion effectively protects drums and absorbs vibration.
4. Positive action jaws insure safe transporting of drums without damage to drum chimes.
5. Fork mounted models can handle 1, 2, 3 drums simultaneously.
6. Quick adjustable heads allow pickup of various drum heights.

Specifications：
Model
　
DG1500B
Capacity
kg
500*3
Net Weight
kg
146
Overall Size
mm
1570*1110*850
Load Center
mm
1150
Grab Min. Height
mm
465
Grab Max. Height
mm
690
Grab Middle Height
mm
615--540
Foks leg (length*width)
mm
150*55
Straddle inner Width
mm
680
Staddle outline Width
mm
990
Straddle Length
mm
900

Previous：DG1000B Double Gator Grip Heavy Duty Forklift Mounted Drum GrabNext：DG2000B Double Gator Grip Heavy Duty Forklift Mounted Drum GrabReturn
