Products – Forklift Mounted Drum Grab

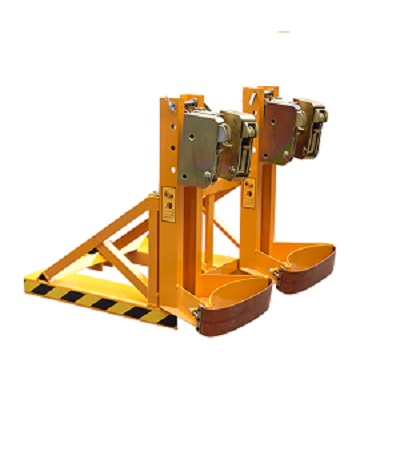

Name:DG850BE Double Gator Grip Forklift Mounted Drum Grab with  Belt
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
 01 Forklift Mounted Single Drum Clamp
 02 Standard Duty Forklift Mounted Drum Handler
 03 Heavy Duty Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
The SINOLIFT DG850BE has been proven over nearly 20 years in global environments.
Designed to handle all steel, plastic and fibre drums.

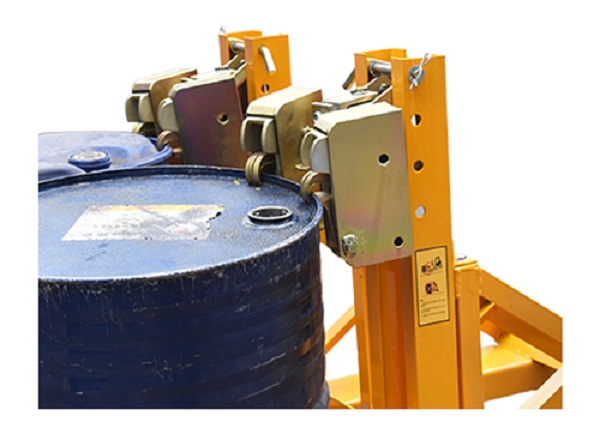

The Grab-O-Matic device uses a unique mechanism to grip the drum by the rim.
This product is designed for industry with frequent drum movements where downtime is unacceptable.
The robust frame can be supplied to lift either a single drum or two drums at once for higher productivity.
Heavy-duty forklift attachment rated for drums up to 850 kg.
Specifications:

Model

DG850BE
Capacity
kg
360*2
Net Weight
kg
108
Overall Size
mm
1000*1030*850
Forks leg (length*width)
mm
150*55
Straddle outline Width
mm
750
Straddle length
mm
760
Grab Min. Height
mm
465
Grab Max. Height
mm
690


Previous:DG850B  Double Gator Grip Forklift Mounted Drum GrabNext:DG500A DG1000A DG1500A DG2000A Forklift Mounted Drum GrabReturn
