Products – Forklift Drum Grabber

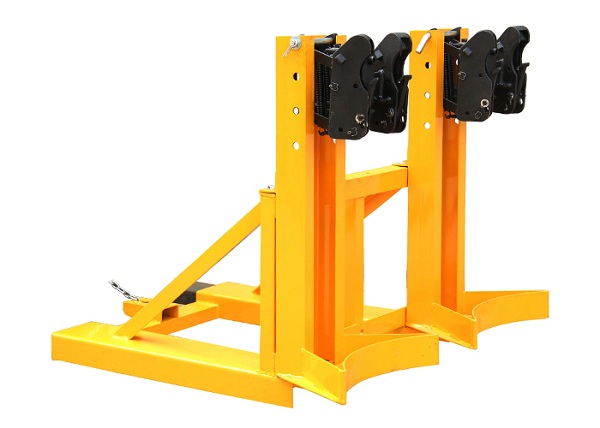

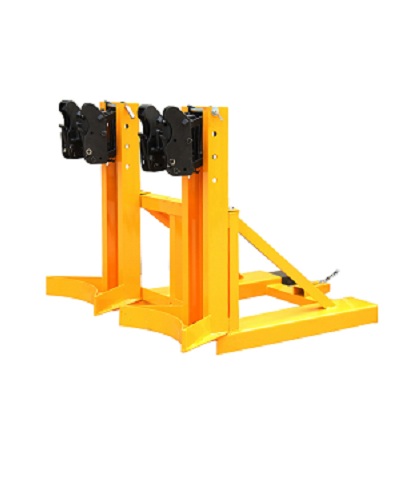

Name:DG720F Double Gator Grip Forklift Mounted Drum Grab
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Drum Grabber
 01 Drum Gripper
 02 Forklift Mounted Single Drum Clamp
 03 Light Duty Forklift Mounted Drum Grab
 04 Middle Size Forklift Mounted Drum Grab
 05 Heavy Duty Forklift Mounted Drum Grab
 06 Super Duty Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Cylinder Handling Trolley
Mini Pallet Stacker
Work Positioner Lift
Platform Hand Trolley
Drum dumping equipment
Other
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Aerial Work Platform
Pallet Truck
Pallet Tilter
Industrial Material Handling Equipment
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
- Grab, lift, move and place drums without the operator leaving driver's seat;
- Completely Mechanical and Automatic drum grab requires no hydraulic or
electrical connections;
- Automatic clamping mechanism for handling steel and plastic drums in high
volume applications;
- Use special black eagle-gripper structure, wholly made of cast steel; easier to
operate, more durable;
- Carriage mounted models are available to mount directly on the carriage of most
lift trucks for tight aisle applications;
- Can handle 1 or 2 drums simultaneously;
- Totally enclosed fork pockets with attached safety chain and cam lock secures
attachment to lift truck.
- DOUBLE -GRIP type grabs

Specifications:
Model

DG720F
Capacity
kg
360*2
Net Weight
kg
86
Overall Size
mm
1030*1020*850
Load Center
mm
1150
Grab Min. Height
mm
465
Grab Max. Height
mm
690
Grab Middle Height
mm
600--675
Foks leg (length*width)
mm
150*55
Straddle inner Width
mm
450
Staddle outline Width
mm
750
Straddle Length
mm
750
