Products – Hydraulic Drum Stacker

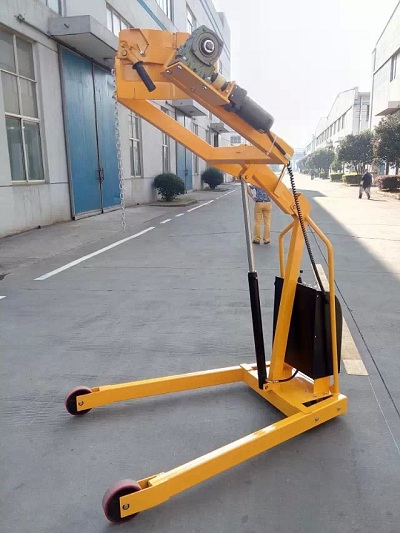

Name:FE800 FE800A Electric Drum Rotating Crane
Click to view larger

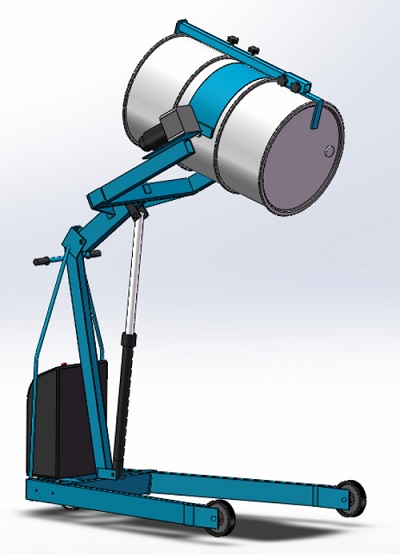

Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
 Drum Tipping Stacker
 Full Electric Drum Adopter
 High Postion Drum Rotating Crane
 Drum Handler
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Move & Pour Drums Lift, move and pour up to 72" /1830mm high
· Rotate drum 360 degrees in either direction.
· AC, DC or Air lift and tilt Power Options.
· Capacity: 365kg/800 lbs.
One Person can safely and easily lift, move and control the puring of a 55-gallon steel drum weighing up to 800 lbs. with minimal physical effort.
Simply control the dump tilt angle and the contents are discharged straight forward directly from the drum.
There are many options with manual, worm gear, chain wheel and electric 360 degree flipping to handle a variety of plastic, steel and fiber drums.
Anti-falling electric design provides safe and labor-saving operation.
Specifications:

Model

FE800
FE800A
Capacity
kg/lbs
365(800)
365(800)
Drum size

30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic
Rotating type

Mechanical Chain wheel
Gear Motor
Lifting height
mm
812-1830 (32-72 inch)
812-1830 (32-72 inch)
Steering Wheel
mm
Φ200
Φ200
Load Wheel
mm
Φ125
Φ125
Lifting Motor
V/W
12/800
12/800
Battery
V/Ah
12/60
12/60
Drum tilting degree
degree
90°~180°~360°
Outline dimension
mm
1180x1150x1260
1180x1150x1260
Net weight
kg
248
251
