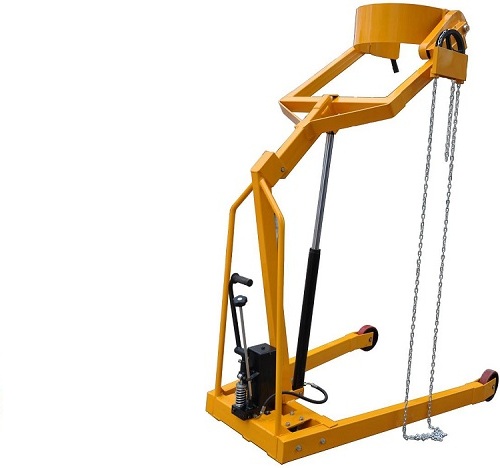

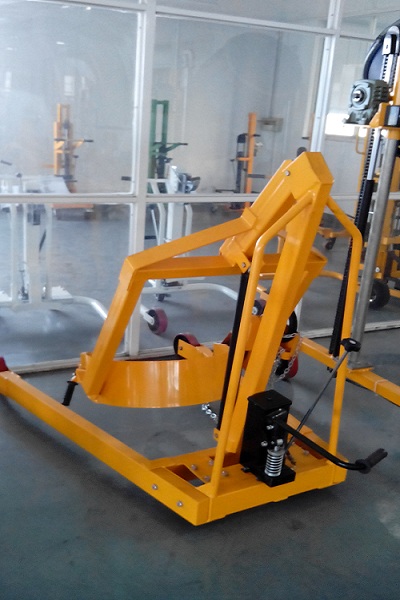

Name:FM800 Manual Hydraulic Drum Rotating Crane
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. It uses a heavy duty steel Girdle with a quick acting over-centre clamp to secure the drum.

2. A foot operated hydraulic pump is used for lifting and a heavy duty gearbox for 320 degrees of controlled tipping of the drum.

3. The standard machine is designed to handle 205 Litre Steel drums that have two equi-spaced chimes over its length.

4. Anti-falling electric design provides safe and labor-saving operation.

Specifications:


Model



FM800
Capacity
kg(lbs)
365(800)
Drum Size
mm
30~50 gallon steel, 210L plastic
Rotation Method



Chain Wheel
Rotating Motor
V/W
-
Lifting Method



Foot Pedal
Lifting Motor/Battery
V/W/Ah
-
Lifting Height
mm
812-1830(32-72 inch)
Wheel Size
mm
Dia.200/Dia.125
Overall Size
mm
1524x990x1397
Net Weight
kg
248
