Products – Hydraulic Drum Stacker

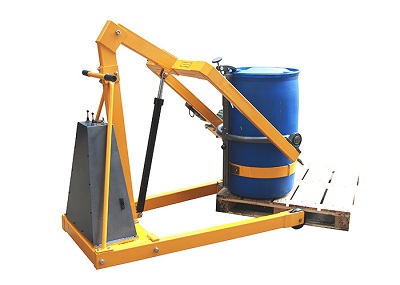

Name:YL300 Drum Carrier Rotator
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
 Drum Tipping Stacker
 Full Electric Drum Adopter
 High Postion Drum Rotating Crane
 Drum Handler
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

* Safe drum handling requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage.

* Heavy-Duty Hydra-Lift Drum Rotator combine incredible strength with simple drum handling by one person.

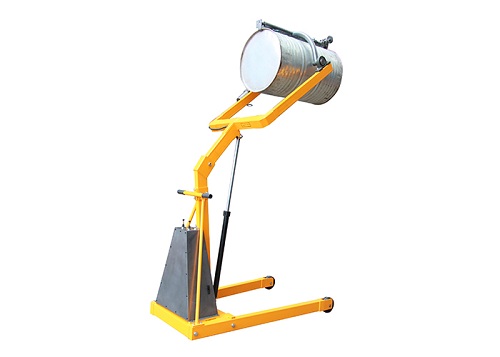

* With this Electric hydraulic drum Karrier, you can lift a steel or plastic drum, and turn it 360 degrees in either direction to pour up to 72inch/1830mm high.

1.Master cylinder increase capacity and add stability

2.Parallel legs provide a compact footprint

3.Durable steel wheels and swivel casters travel smoothly under heavy load

4.Step-down floor lock holds unit in place while dispensing drum


Specifications:

Model
YL300
Rated Load Capacity
kg
300
Drum Size
55gallon(Ф572×900) or 80gallon(Ф800×900) 210L
plastic or steel drum
Inside/Outside Width of Support Leg
mm
800 (inside)930 (outside)
Turning Radius
mm
1750
Pump Station Power
kw/h
0.8
Battery
Ah/V
100Ah/12V
Lifting Height
mm
1950 (upright drum)2050 (horizontal drum)
Lifting Speed
mm/s
120
Overall size
mm
1570x1070x1490
Net weight
kg
220

Previous:YL420 Full Electric Counter Weight Drum AdopterNext:FM800 Manual Hydraulic Drum Rotating CraneReturn
