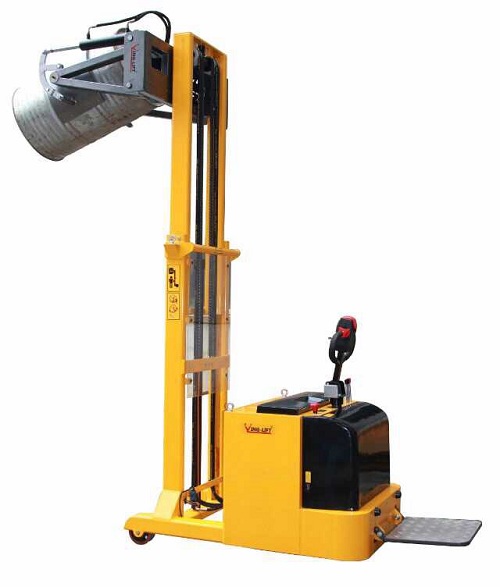

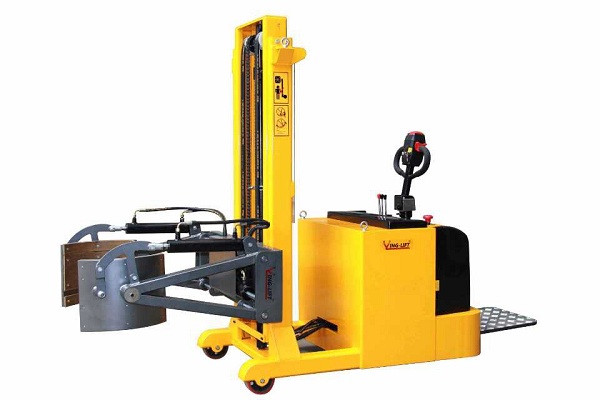

Name:YL420 Full Electric Counter Weight Drum Adopter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1. The DRUM-HAULER makes any easy task of transporting drums in and out of trucks, or up and down ramps. Designed to butt directly up against pallets, storage cabinets and containment skids.
2. Its large industrial battery will operate continuously for an 8-hour shift.
3. The unit's compact size and transistorized speed controller provides remarkable tight aisle maneuvering.
 4. MOS 90 Transistorized Speed Controller provides infinite variable speed
Main characteristics:
Brake: Adjustable electromagnetic disc type.
Safety reversing switch with horn in handle , Safety stability casters
Battery discharge indicator-gauge type
Paint: Safety Yellow enamel

Specifications:
Model

YL420
Drive Type

Full Electric
Operating Type

Walkie/Pedestrian
Rated Load Capacity
kg
420
Drum Size

55 gallon (Ø572x900) steel
Lifting Height
mm
2400
Turning Radius
mm
2120
Max. Grade ability (laden/unladen)
%
3/5
Driving Wheel Size
mm
Ø250*80
Tire

Polyurethane
Controlling Type

Electromagnetic brake
Drive Motor Power
KW
1.2
Lifting Motor Power
KW
2.2
Noise Level
db(A)
<70
Battery
V/Ah
24/210
Charger
V/A
24/30
Rotating Range (degree)
°
135°
Overall Size
mm
2270x1170x1860
Net Weight
kg
1100
